1#Compact AC Gearbox Motor
Model:1# Gearbox Series (100W / 200W)
Origin:Made in China
Available in 100W and 200W power ratings. Choose standard or compact housing based on the gear ratio.
Reduction ratio range: 3–200. Compact design supports both horizontal and vertical mounting to meet diverse equipment space constraints and output torque requirements.
Product Overview

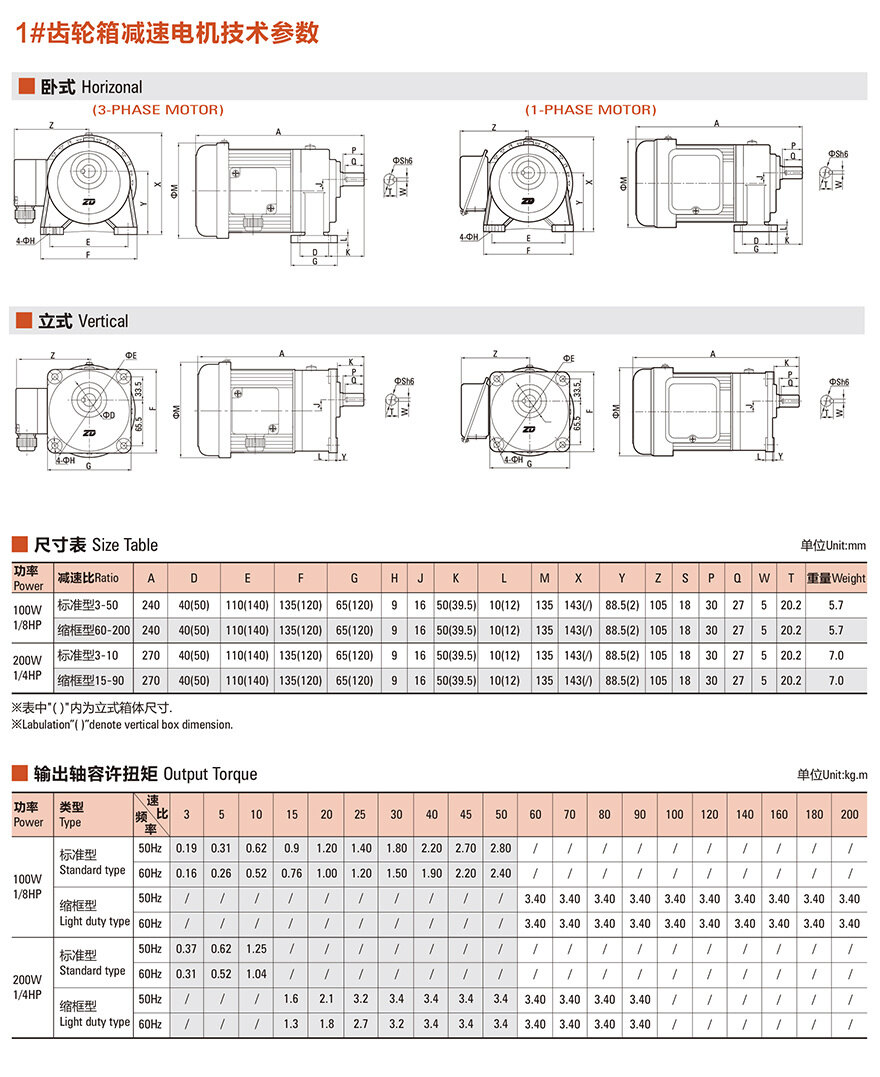

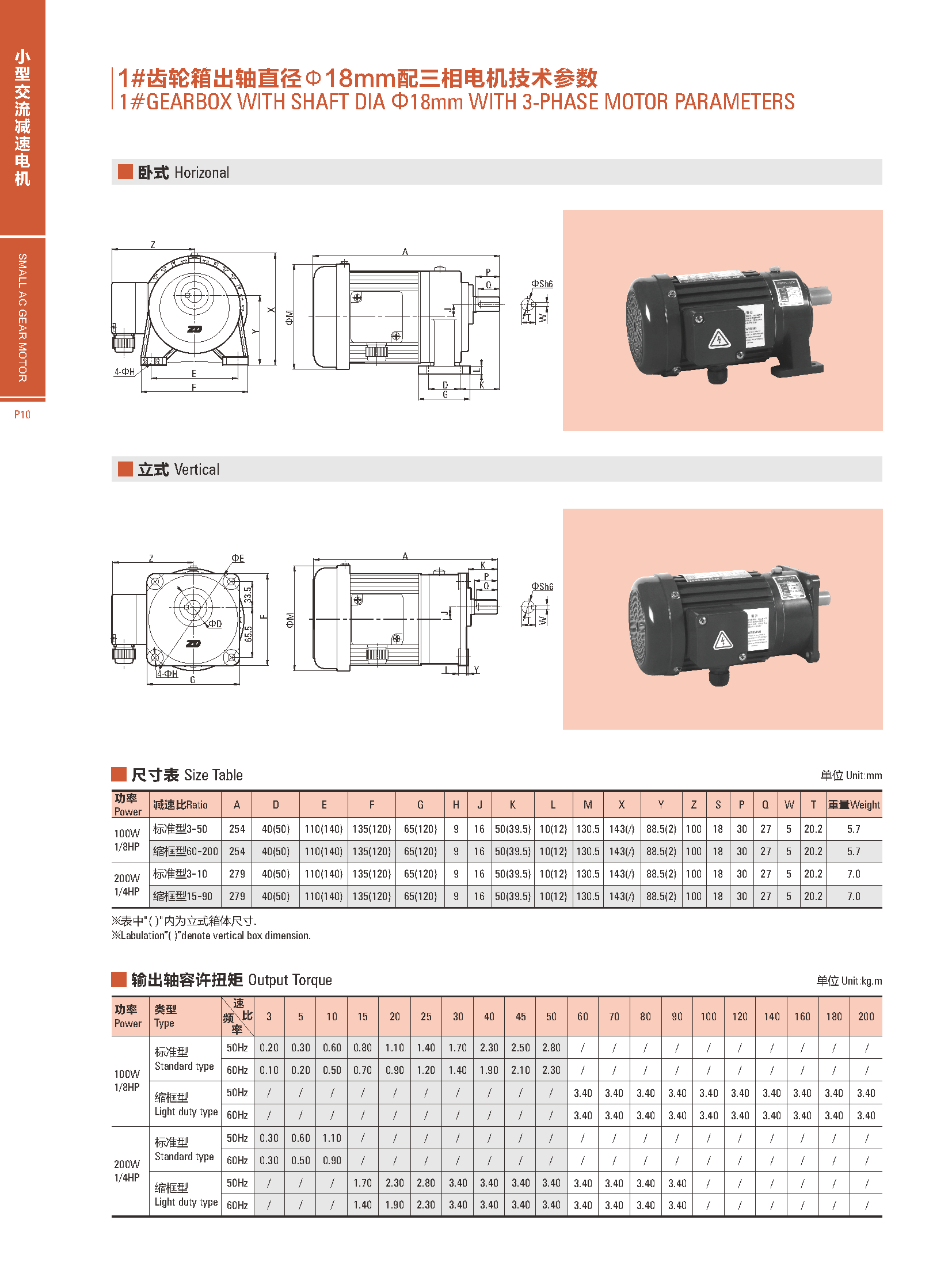

Product Specifications
Product Type: Small AC Gear Reduction Motor
Gearbox: 1#Gearbox
Output shaft diameter: Φ18mm
Output Power: 100W / 200W
Motor Type: Single-phase / Three-phase
Mounting Options: Horizontal / Vertical
100W Standard Reduction Ratio: 3～50
100W Compact Gear Ratio: 60～200
200W Standard Reduction Ratio: 3～10
200W Compact Gear Ratio: 15～90
100W Weight: Approx. 5.7kg
200W Weight: approx. 7.0 kg
Maximum allowable output torque: approx. 3.4 kg·m (varies by model, speed, and gear ratio)
Output structure: solid shaft output

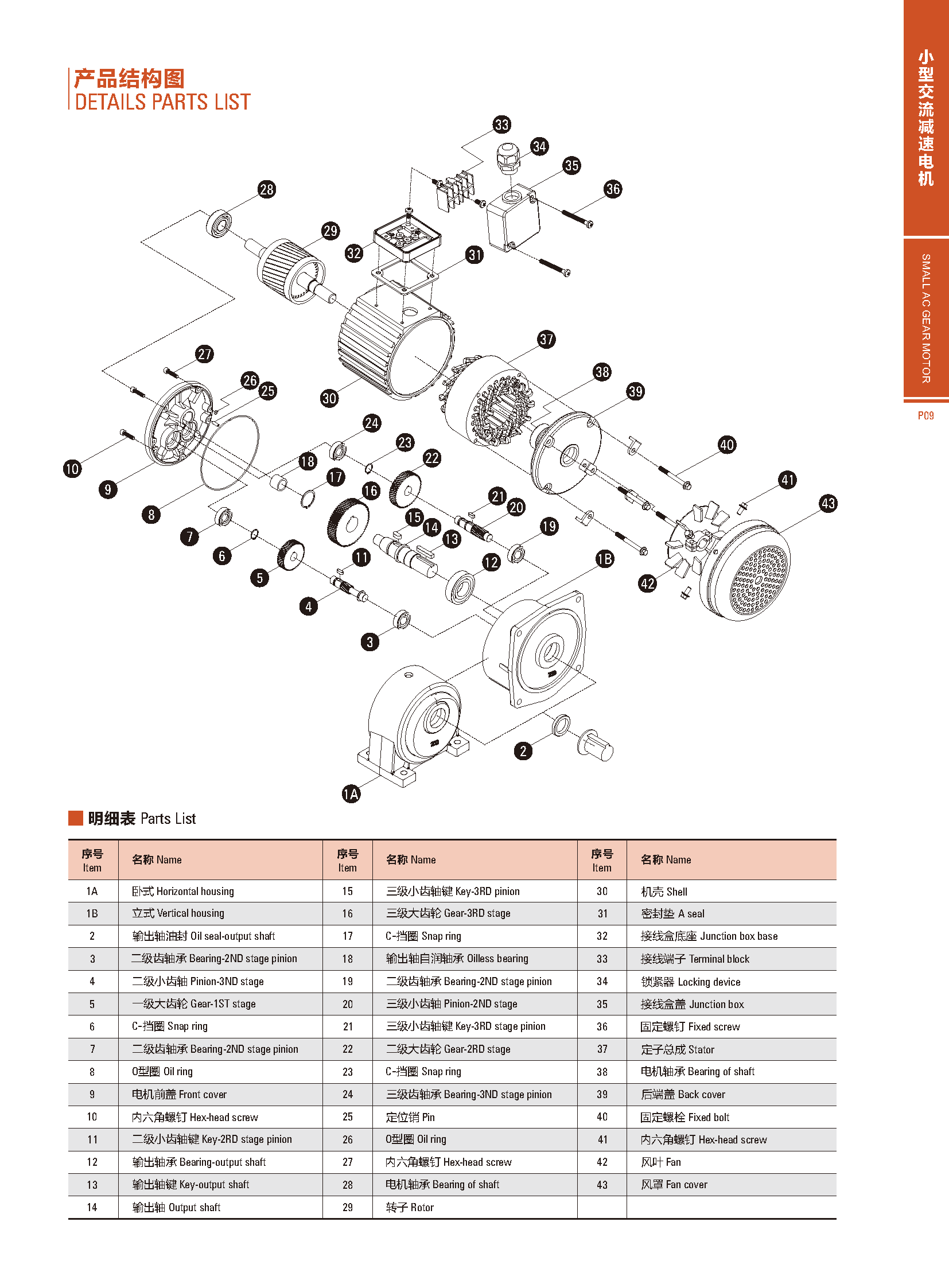

Main components: gears, output shaft, bearings, oil seals, rotor, stator, junction box, fan, etc.
Typical Use Cases
Automated production lines, conveyor systems, packaging machinery, logistics conveyors, food processing equipment, industrial assembly machines, small machine tools, transmission mechanisms, and other industrial equipment requiring low-speed, high-torque drive.
