PRODUCT CENTER
Product Center
High-performance core components for multi-industry, multi-scenario applications
Motor and Drive System
We provide gear motors, transmission motors, gear reducers, drives, and related motion control products to deliver reliable power and transmission support for industrial automation equipment.

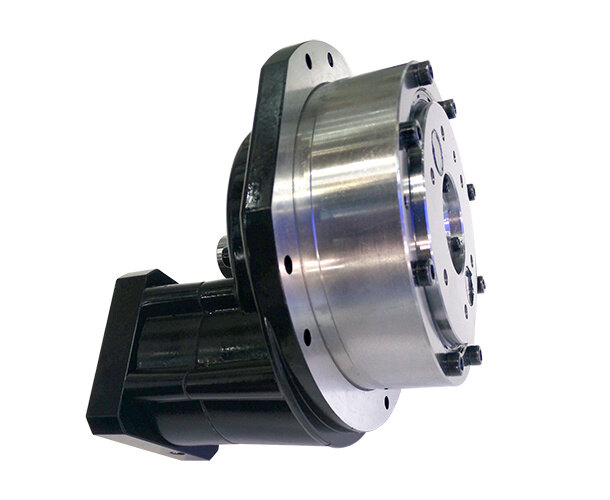

RCA Series Cycloidal Pinwheel Precision Reducer
The RCA series offers multiple structural configurations, including RCA and RCA-TB, supporting hollow shaft designs and synchronous belt drive options. Rated output speed is 15r/min, with rated output torque ranging from approximately 98 to 3160 N·m across different models. Selection is based on motor shaft diameter, gear ratio, and mounting method.

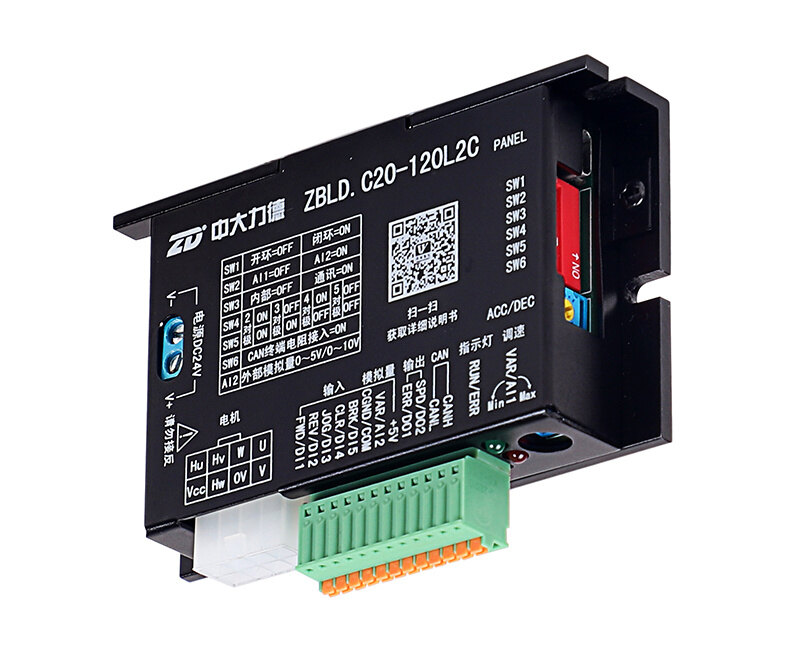

C20 Series Brushless Motor Driver
The C20 series offers power ratings of 120W, 400W, and 800W, supporting both low-voltage DC and high-voltage AC 220V options. Select RS485 or CAN communication based on the model. Features include external keyboard support, digital I/O, analog input, HDI high-speed pulses, and multi-segment speed control.

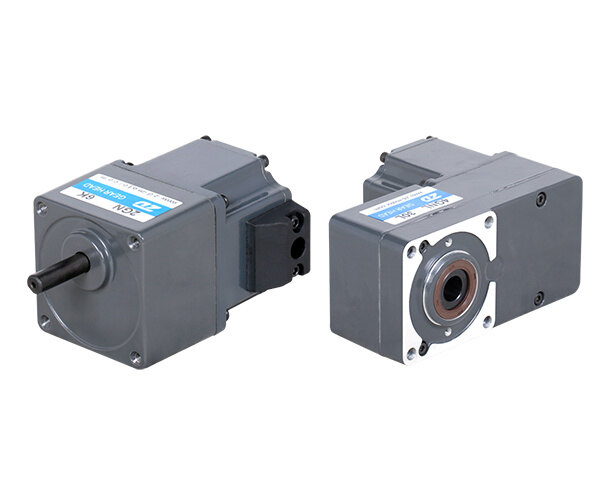

60 Series 2 5W Brushless DC Gear Motor
Rated motor speed: 2500rpm; rated torque: 0.096N m; peak torque: 0.144N m. Supports DC 24V power, with optional DC 36V / DC 48V. Also available in AC 110V / AC 220V configurations. Gear reduction ratio up to 200, enabling low-speed, high-torque output.

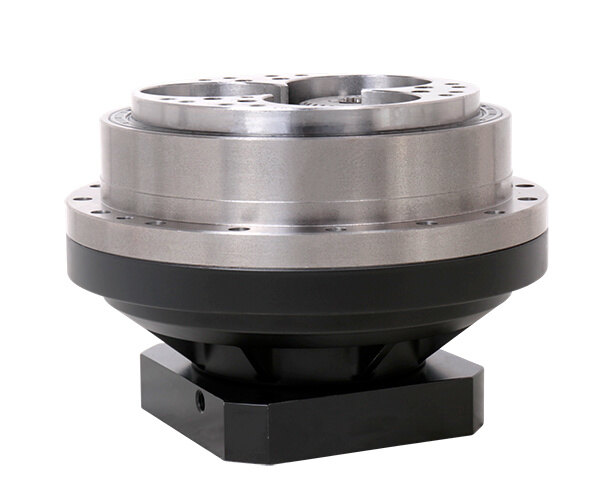

REA Series Cycloidal Precision Reducers
The REA series covers multiple frame sizes, with a rated output torque of approximately 58 to 3136 N·m and a rated output speed of 15r/min. Depending on the model, it supports motor shafts ranging from approximately 14 to 42 mm and offers various gear ratios. The motor mounting flange can be configured according to the compatible motor model.

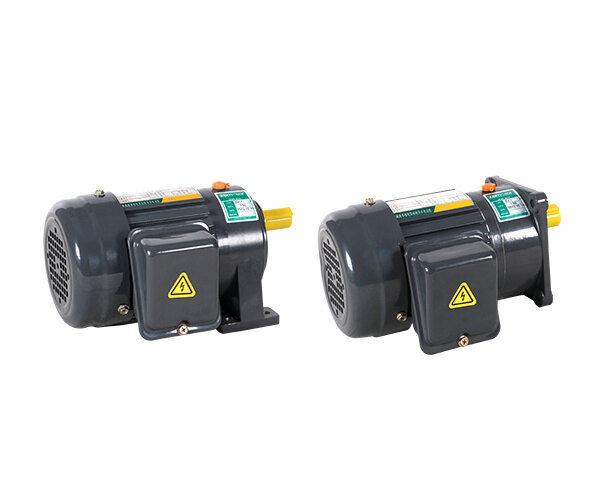

1#Small AC Gearbox Motor
Available in 100W and 200W power ratings. Choose standard or compact frame configurations based on the reduction ratio. Reduction ratios range from 3 to 200. The compact design supports both horizontal and vertical mounting to meet diverse equipment space and output torque requirements.

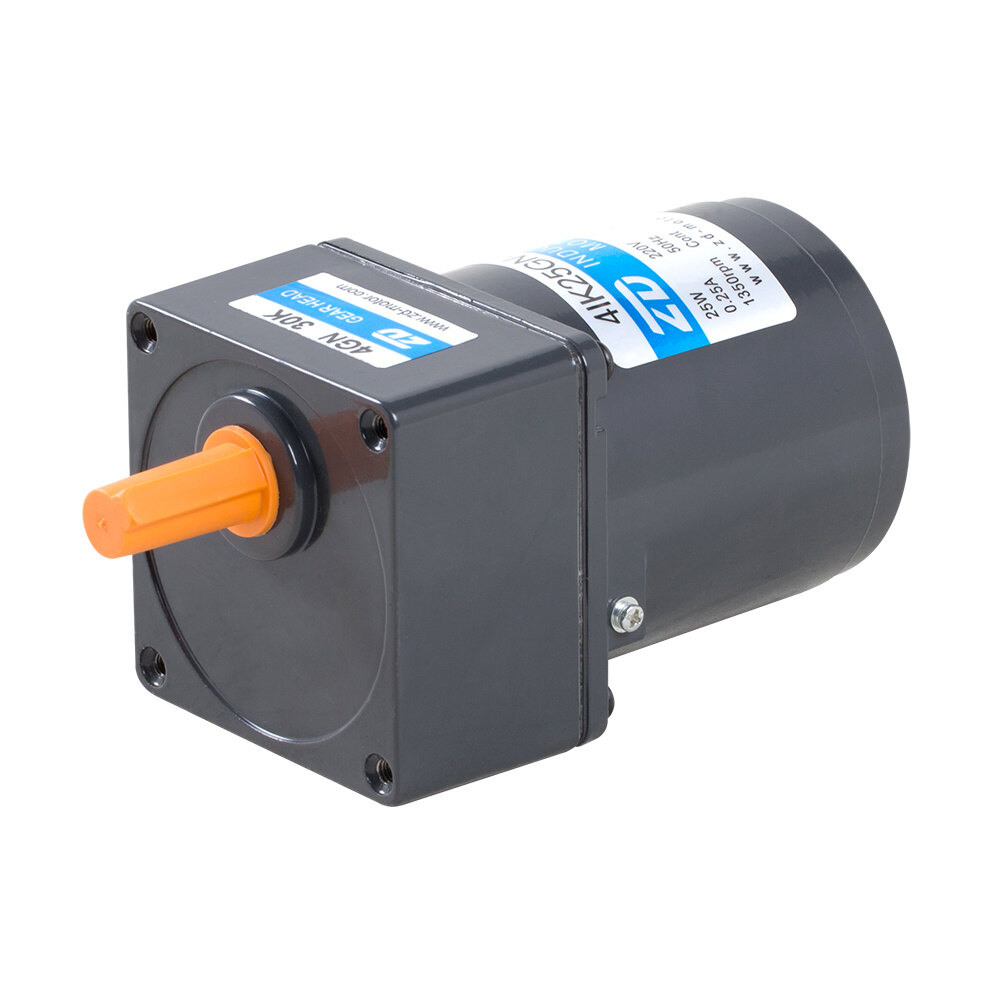

4IK25GN Series 2 5W Micro AC Induction Gear Motor
Available in wire and terminal box configurations, with options for gear shaft or round shaft designs. Paired with the 4GN series parallel shaft reducers, reduction ratios range from 3 to 200, meeting diverse speed and output torque requirements.

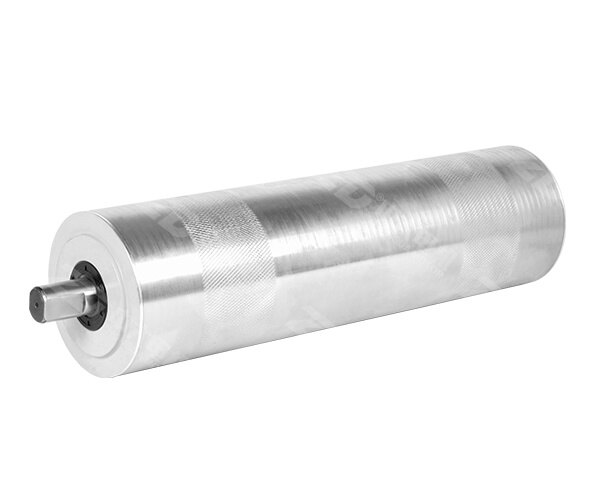

113 AC Motorized Drum
The product features an oil-immersed motor for cooling and high-alloy steel precision-ground gears. The motor has an insulation class F rating and includes an overheat protector. The shaft end employs a dual-seal design, achieving an IP66 protection rating. The standard drum is made of galvanized low-carbon steel; alternatively, a 304 stainless steel food-grade drum can be selected. Customization options include drum length, belt speed, and non-standard specifications.

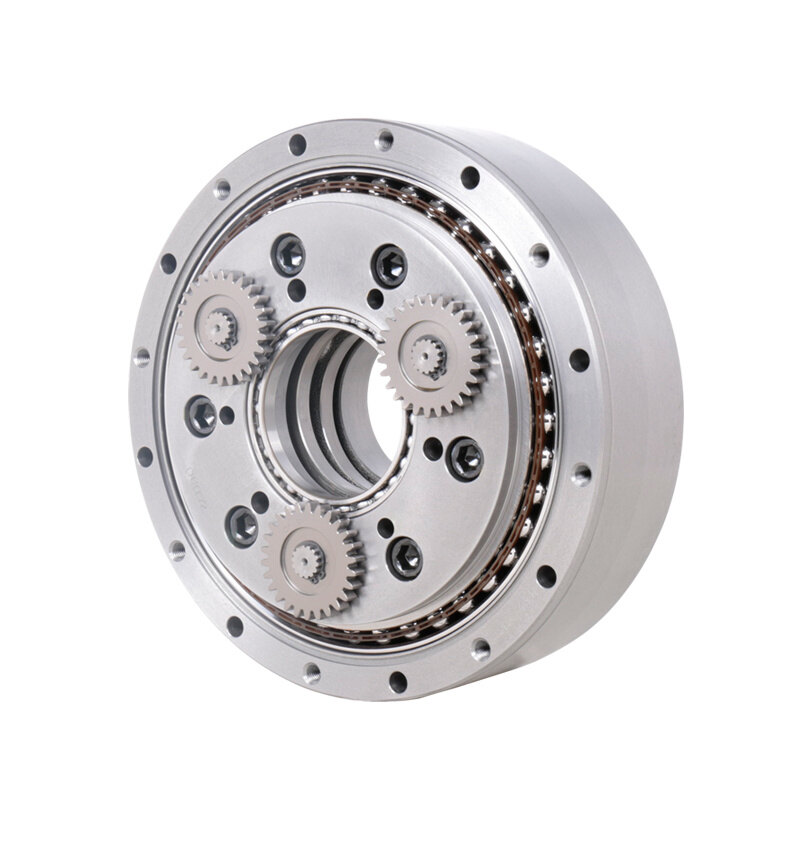

RVC Series Cycloidal Pinwheel Precision Reducer
The RVC series offers multiple base and structural specifications, including standard RVC, RVC-P, and 320CA-RVC variants. Standard center gears are available, with input gears customizable to match servo motor shafts. The hollow structure supports low-speed tubes for cable routing and grease sealing within the reducer.
