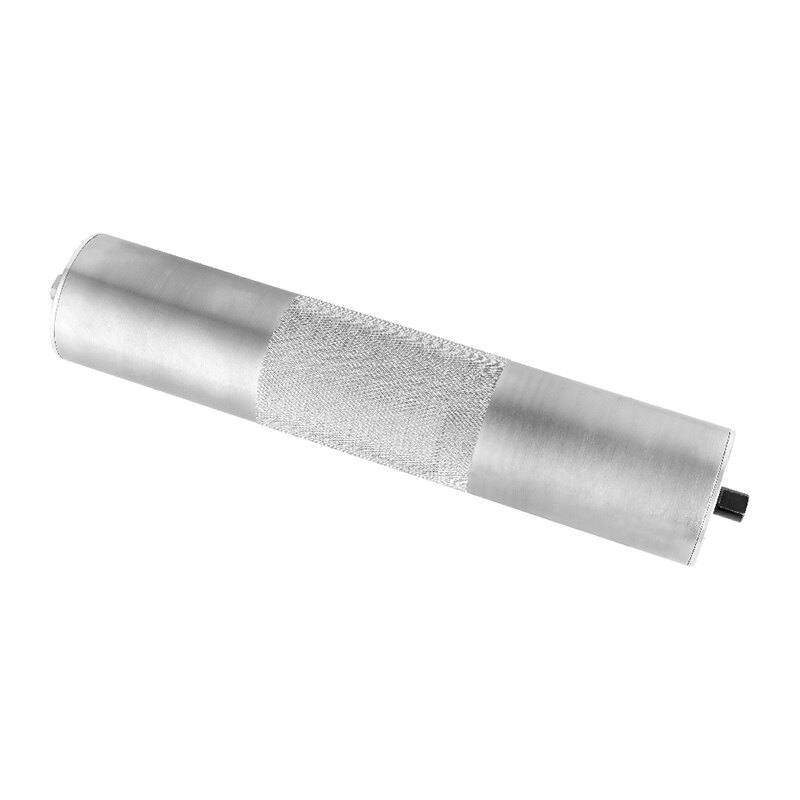

113 AC Motorized Drum
Model:113 Series AC Drum Motor
The product features an oil-immersed motor for cooling and precision-ground high-alloy steel gears. The motor has an insulation class F rating and includes an overheat protector.
The shaft end features a dual-seal design with an IP66 protection rating. The standard barrel is made of galvanized low-carbon steel, with 304 stainless steel available as an option.
Food-grade barrel; customizable for length, belt speed, and non-standard specifications.

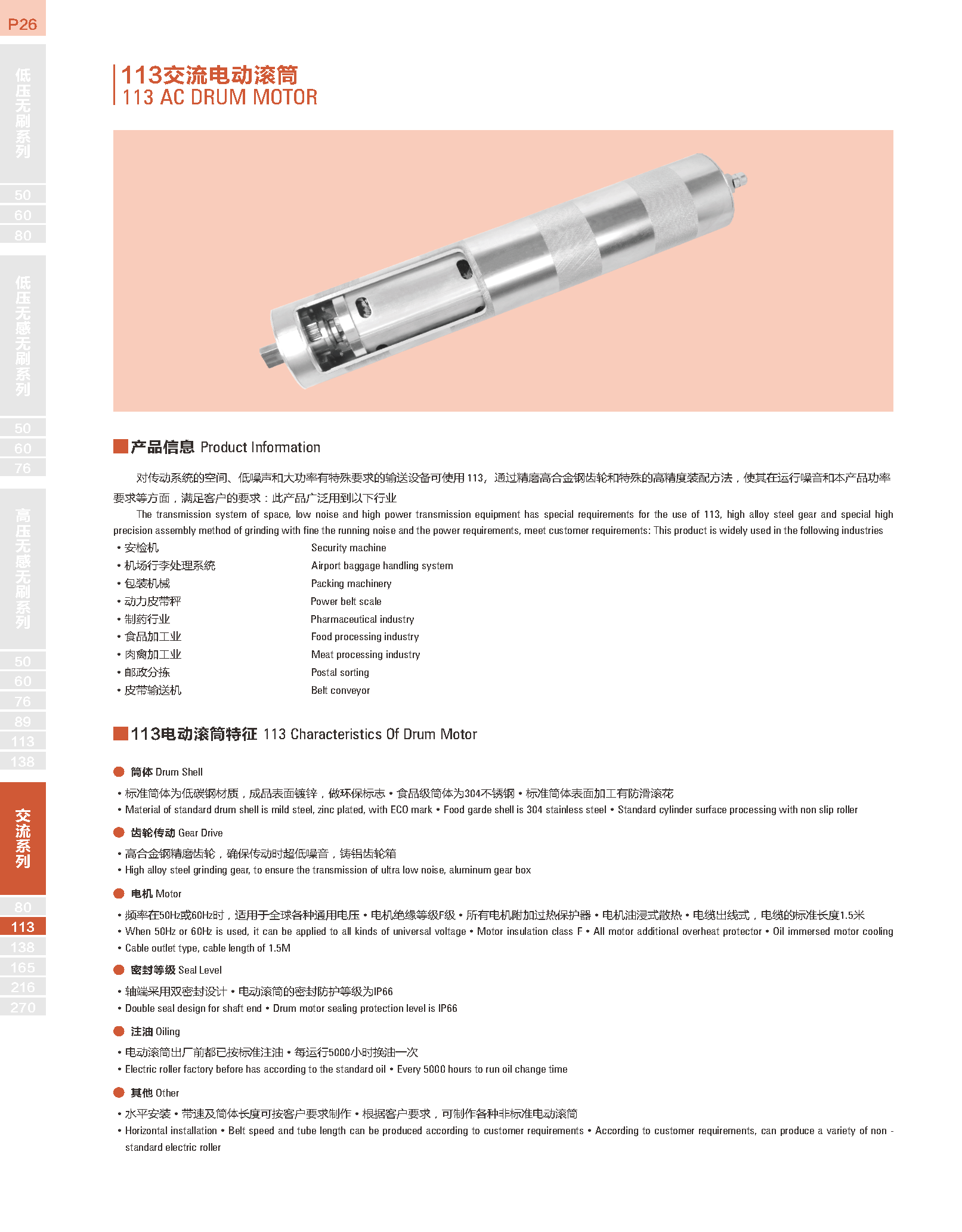

Product Overview
The 113 AC Drum Motor is an integrated drive solution designed for conveyor systems, featuring high-alloy steel precision-ground gears and high-precision assembly processes.
Compact, low-noise, high power density, and excellent sealing performance. Ideal for conveyor systems with strict requirements for installation space, operating noise, and transmission performance.

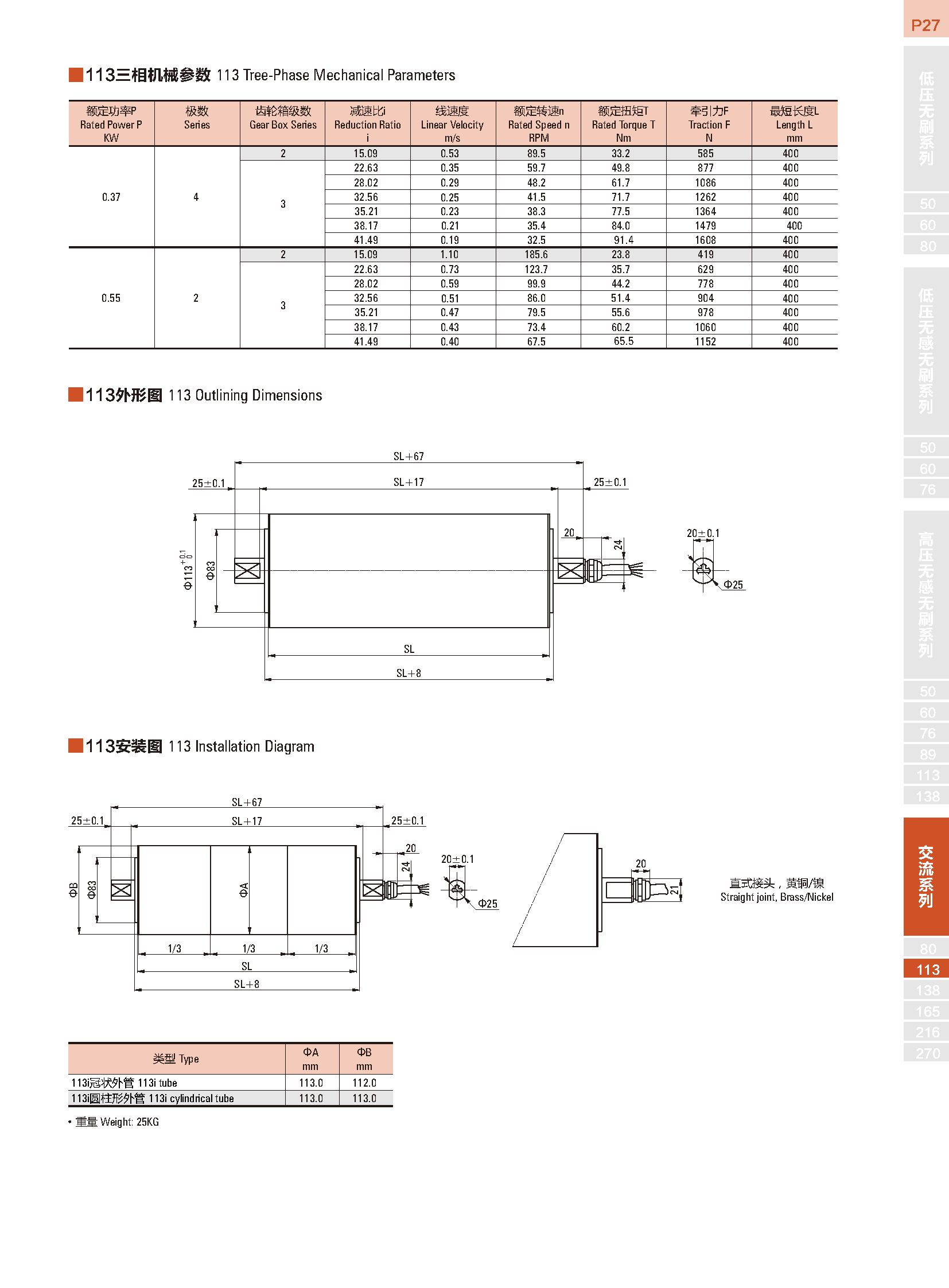

Product Specifications
Product Series: 113 AC Series
Product Type: AC Electric Drum
Cylinder Diameter: Φ113mm
Rated Power: 0.37kW / 0.55kW
Motor Poles: 2 / 4
Gear ratio: approximately 15.09–41.49
Linear speed: approx. 0.19～1.10m/s
Rated Speed: Approximately 32.5–185.6rpm
Rated torque: approximately 23.8～91.4 N·m
Traction: approximately 419–1608N
Minimum cylinder length: 400mm
Power Frequency: 50Hz / 60Hz
Insulation Class: F
Cooling method: Oil-immersed heat dissipation
Ingress Protection Rating: IP66
Standard cable length: 1.5m
Standard Cylinder: Low-carbon Steel, Galvanized
Food-grade body: SUS304 stainless steel
Installation Method: Horizontal
Oil change interval: approximately 5000 hours
Weight: approx. 25kg
Typical Use Cases
Security scanners, airport baggage handling systems, packaging machinery, belt weighers, pharmaceutical equipment, food processing machinery, poultry and meat processing equipment, postal sorting systems, and belt conveyors.
