RCA Series Cycloidal Pinwheel Precision Reducer

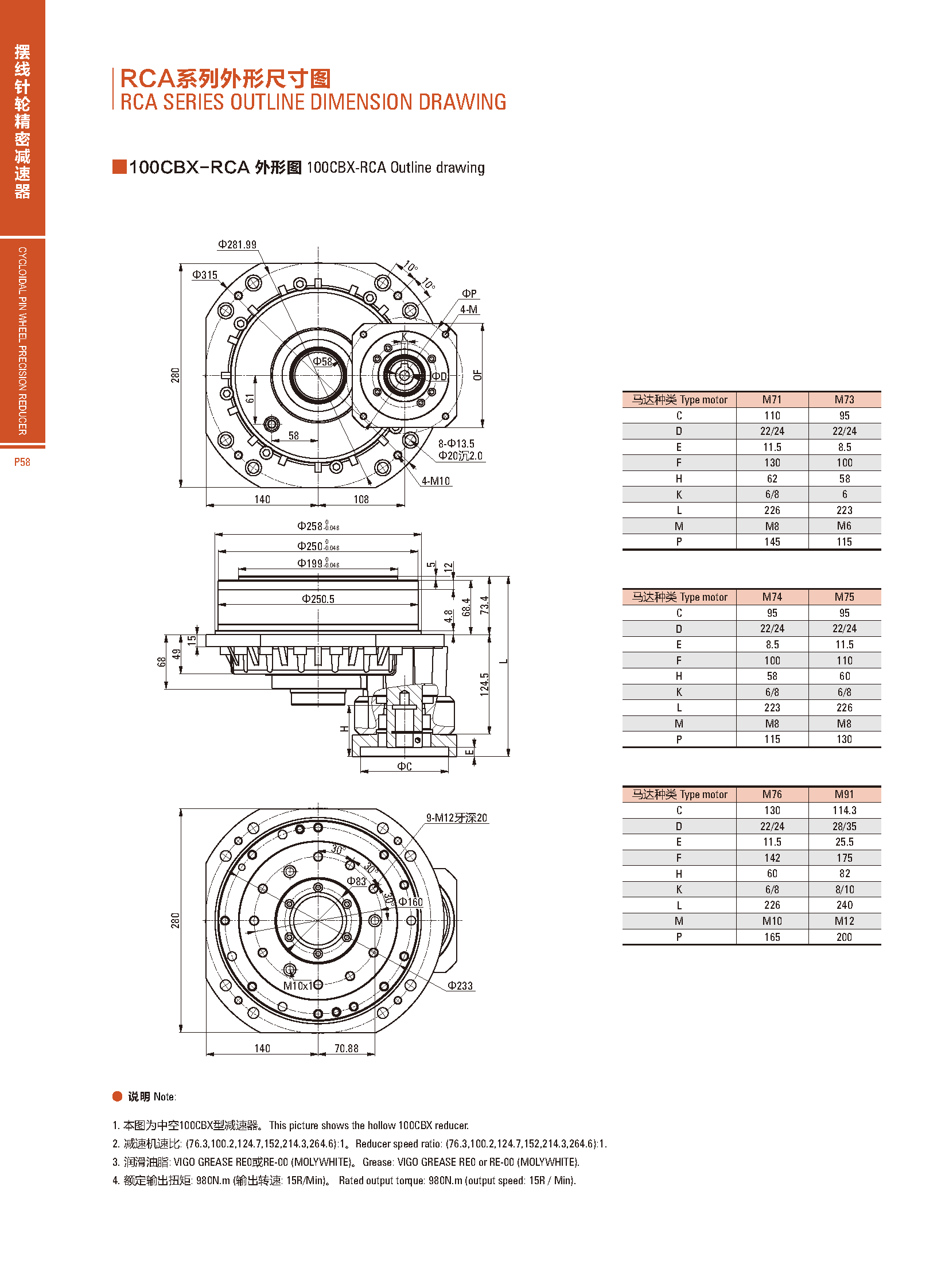

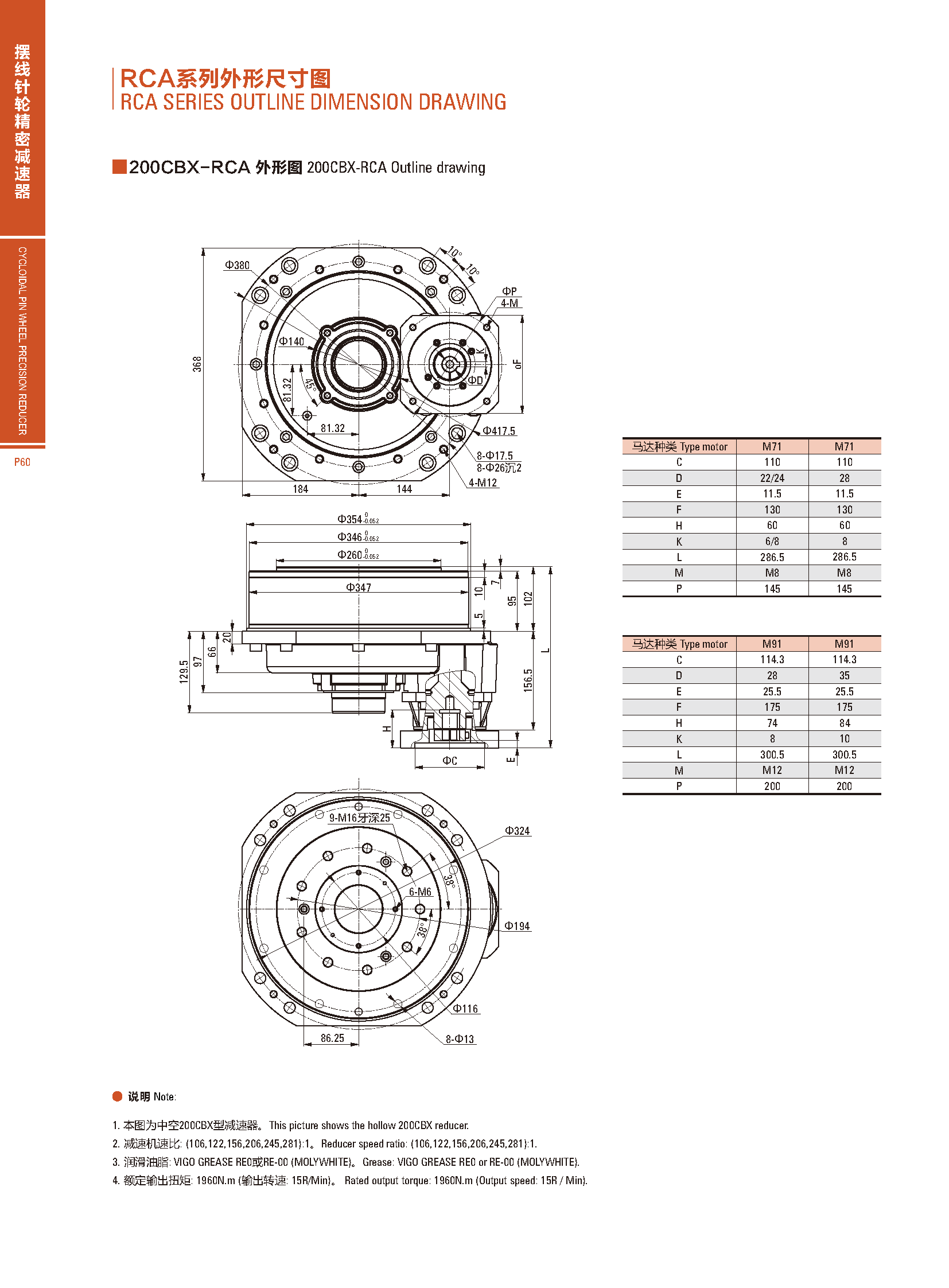

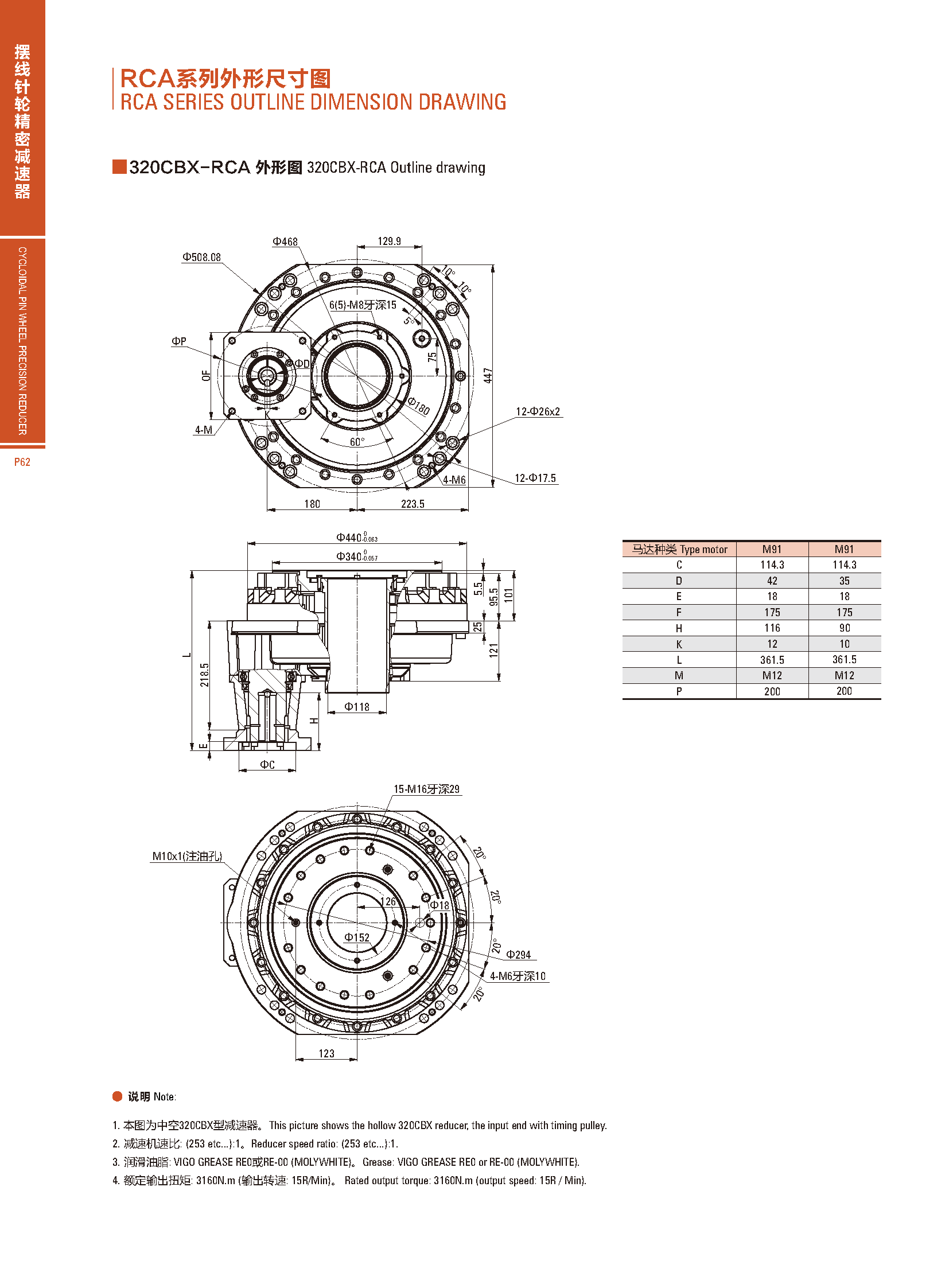

Model:RCA Series (10CBX, 27CBX, 50CBX, 100CBX/120CBX, 200CBX, 320CBX)
Origin:Made in China

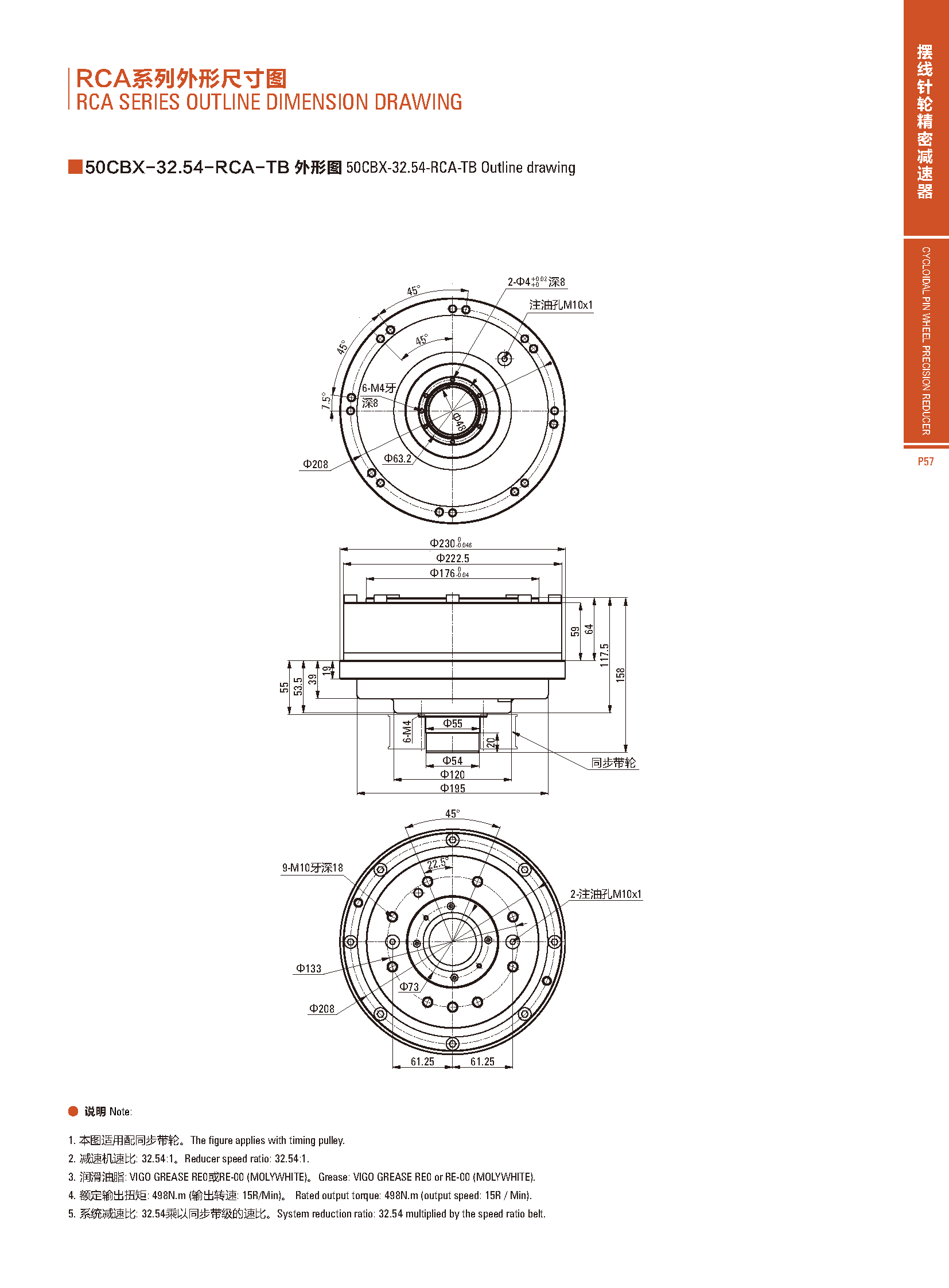

The RCA series offers multiple structural forms, including RCA and RCA-TB.
Supports hollow shaft and synchronous belt input configurations. Rated output speed is 15r/min.
Rated output torque varies by model, approximately 98 to 3160 N·m. Select based on motor shaft diameter,
Select based on gear ratio and mounting method.
Product Overview
The RCA series cycloidal precision reducers feature an input flange design, offering multiple models to suit various installation and transmission requirements. Options include center gears, customized input gears, and synchronous belt pulleys.
Available in multiple reduction ratios and output torque ratings, ideal for precision drive systems requiring high reduction ratios, high output torque, and compact installation.
Product Specifications
Product Series: RCA Series

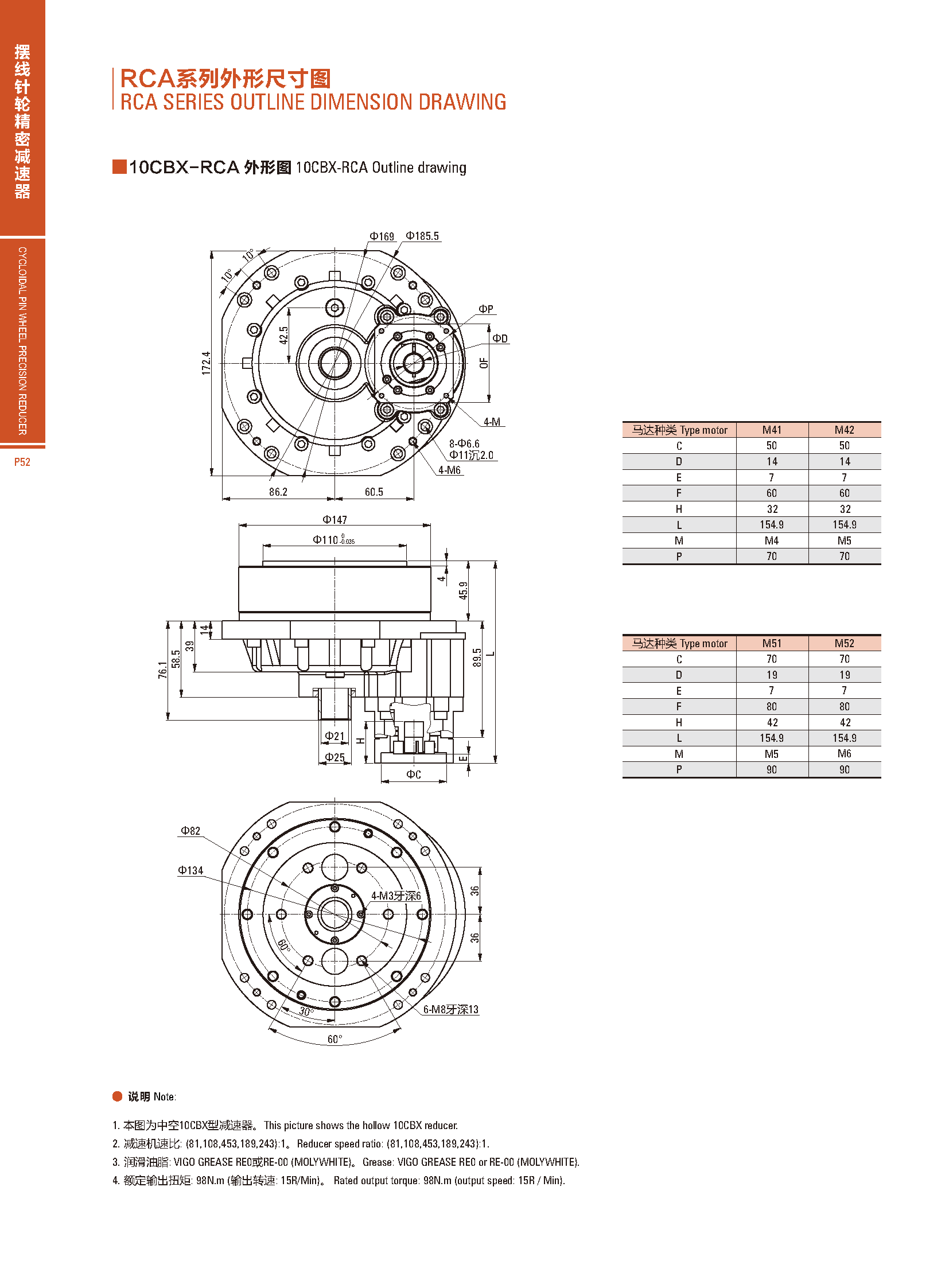

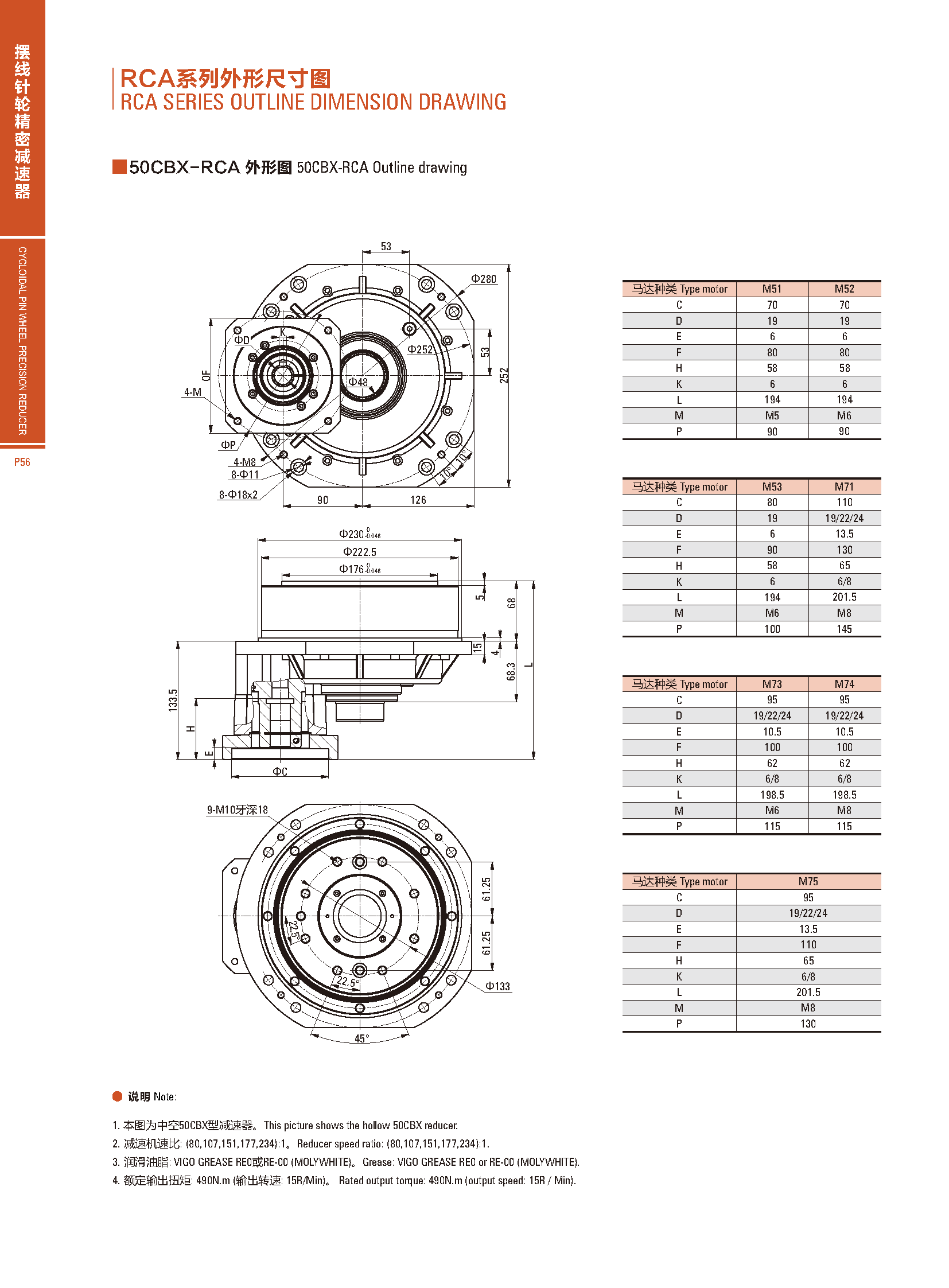

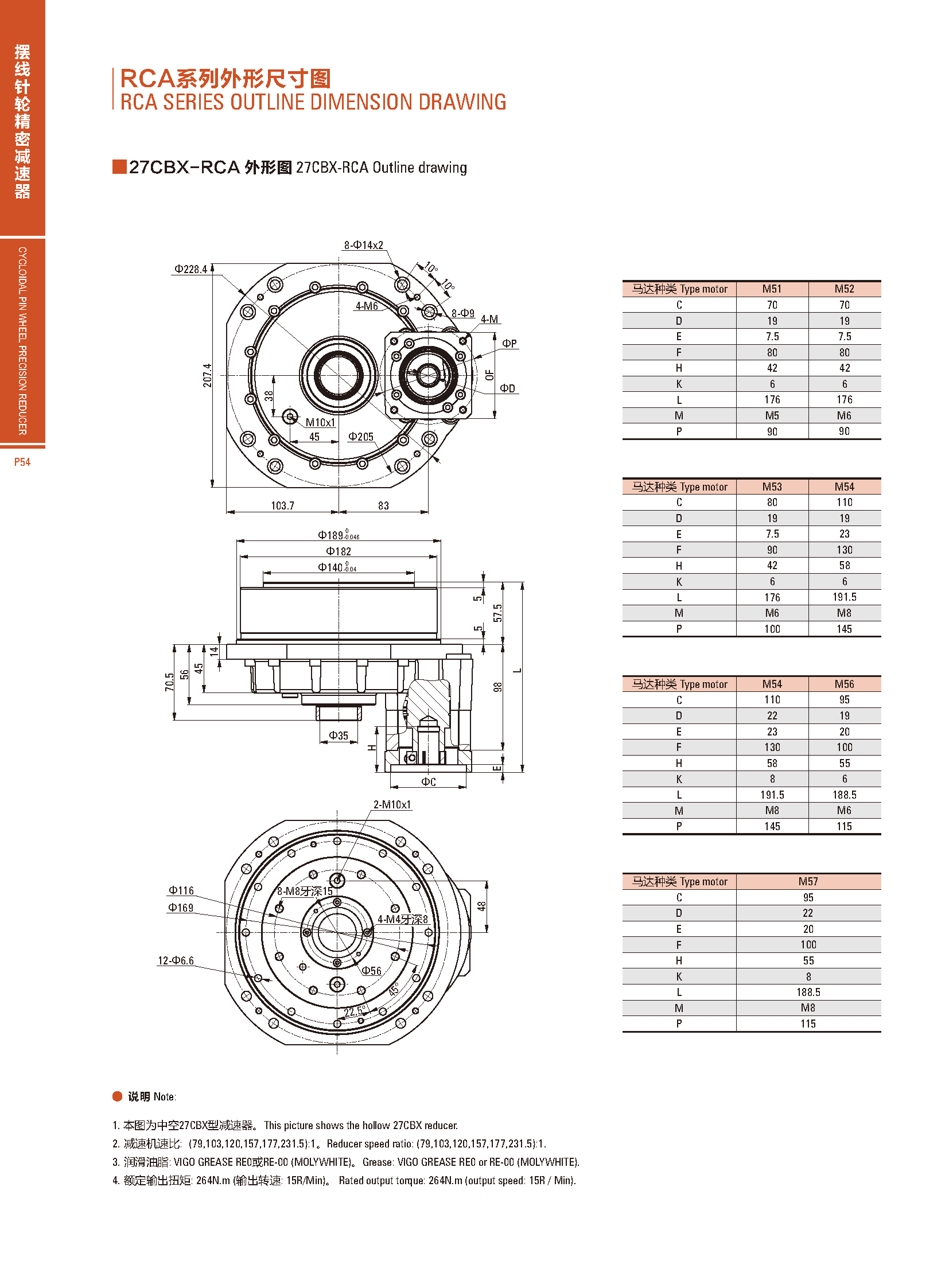

Main Models: 10CBX / 27CBX / 50CBX / 100CBX / 120CBX / 200CBX / 320CBX
Rated Output Speed: 15r/min
Rated output torque: approx. 98～3160 N·m
Gear Ratio: Available in multiple specifications for different models.
Compatible motor shaft diameter: Available in sizes such as 14–42 mm, depending on the model.

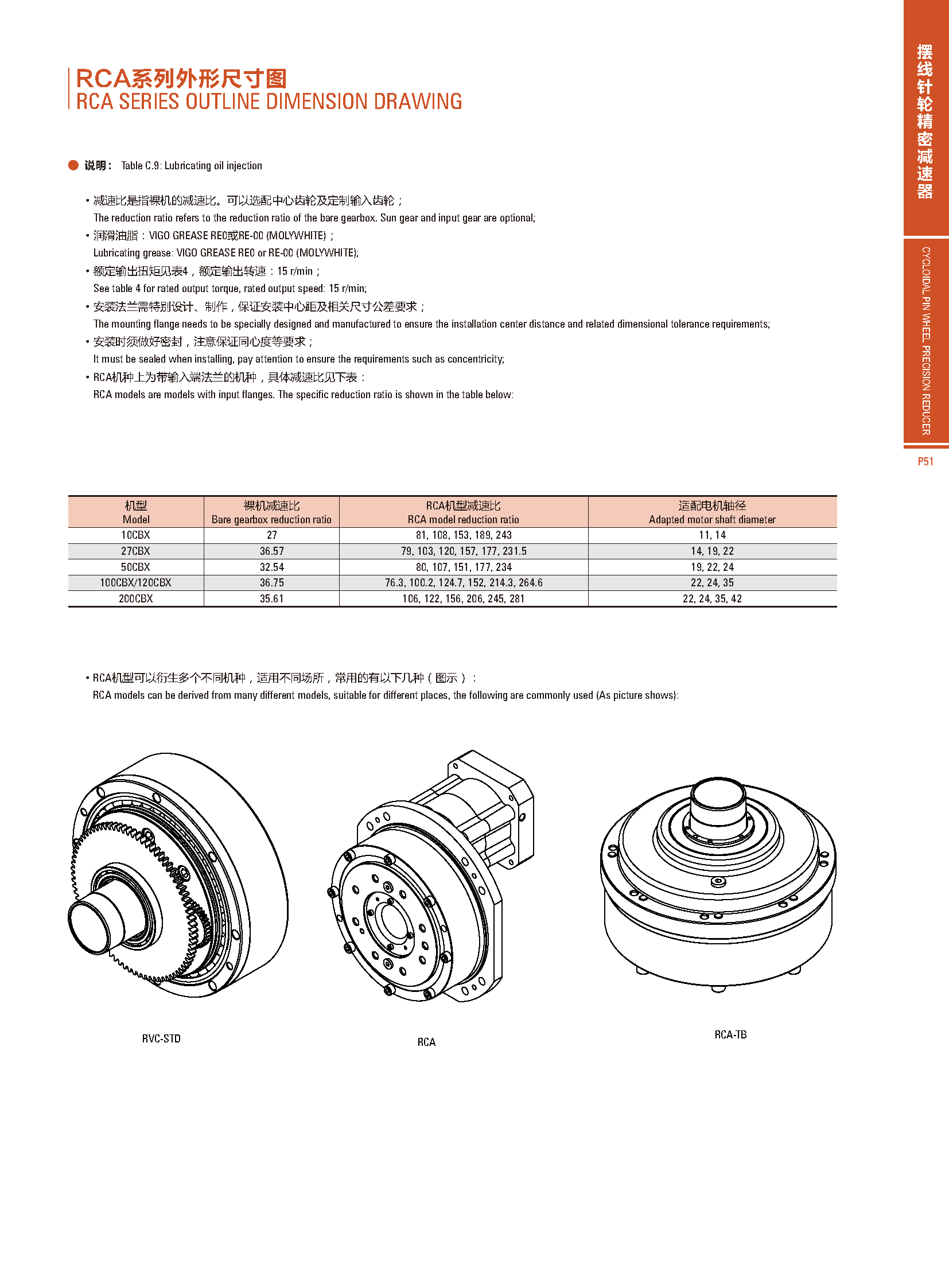

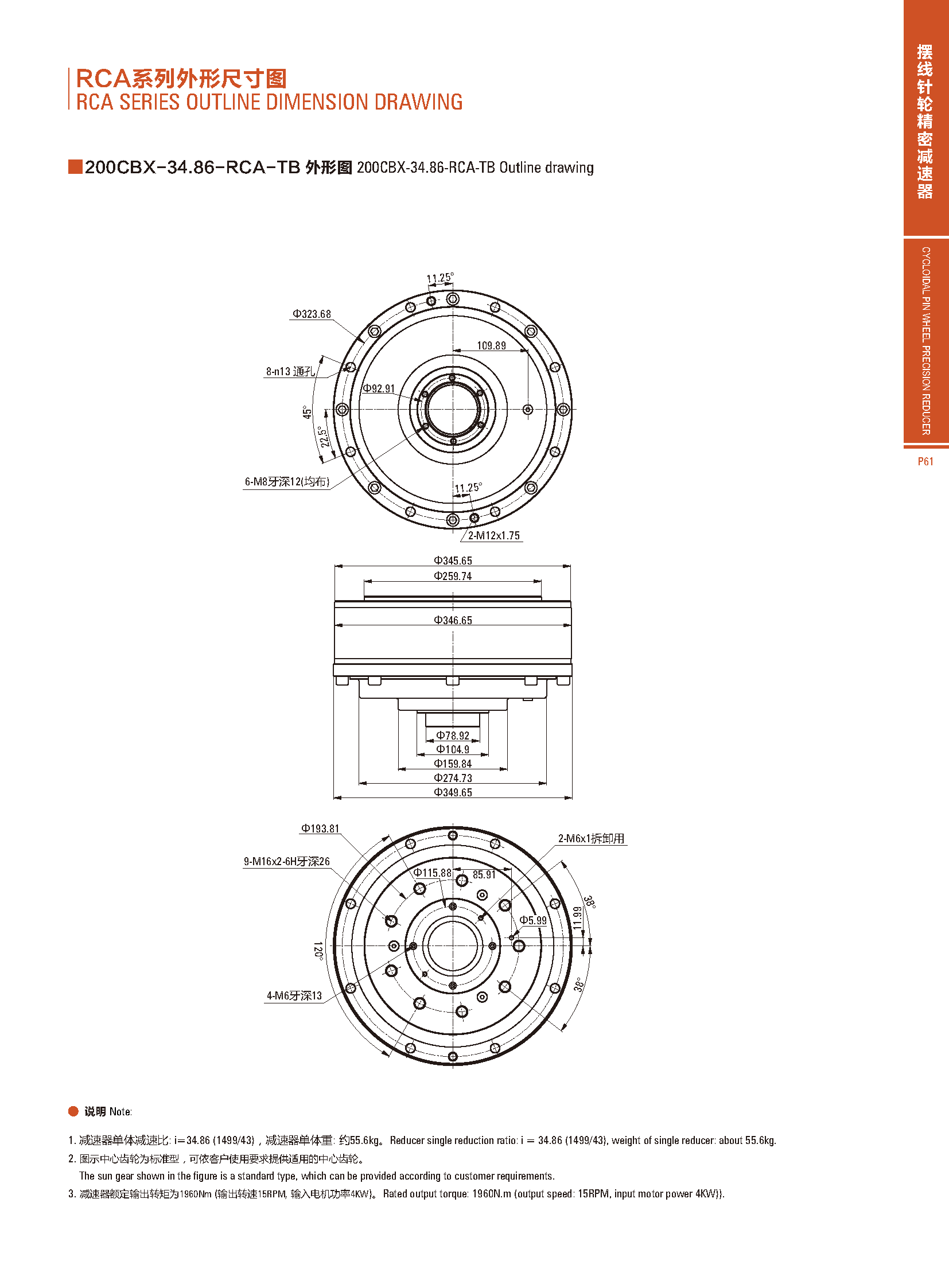

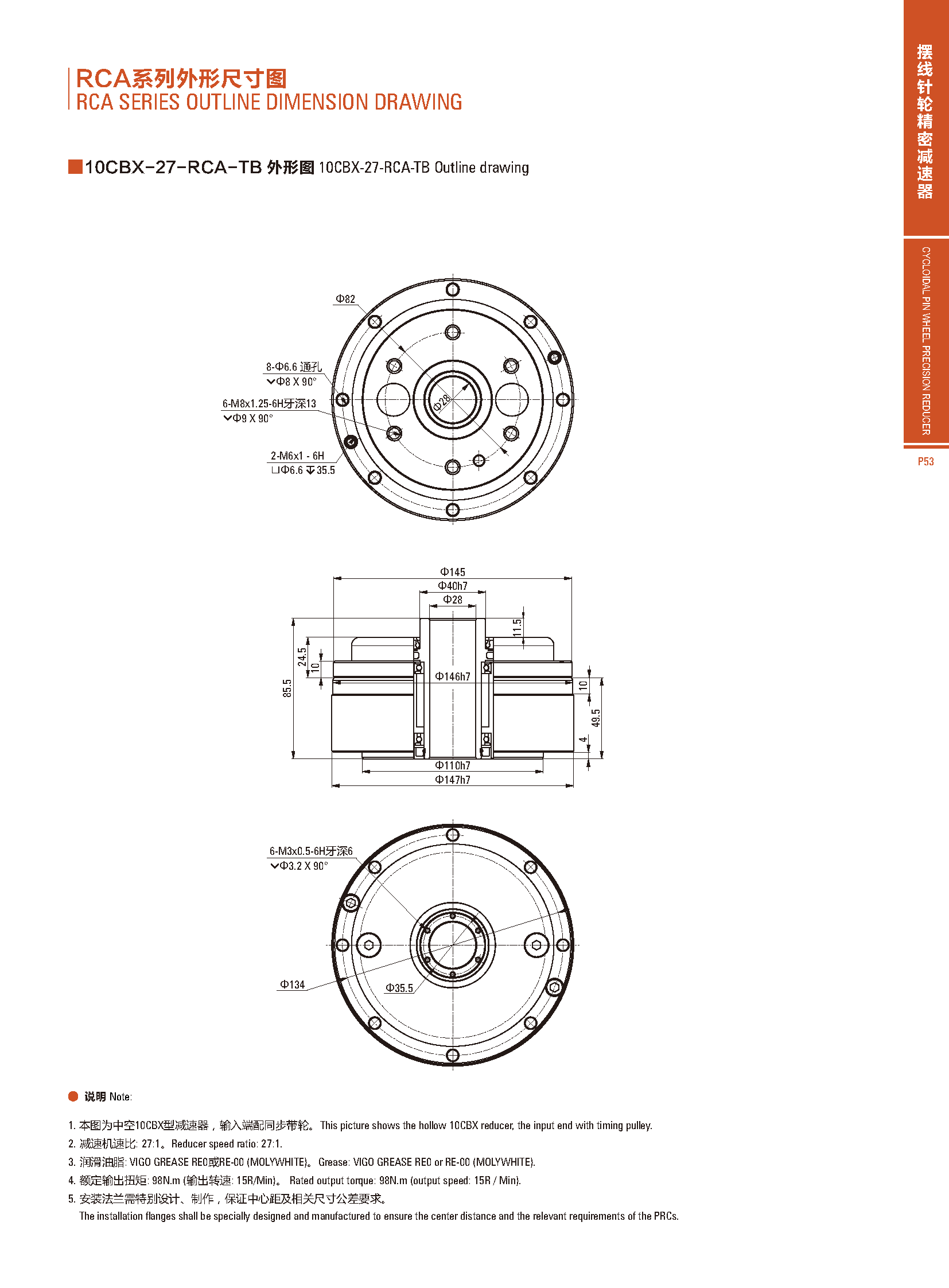

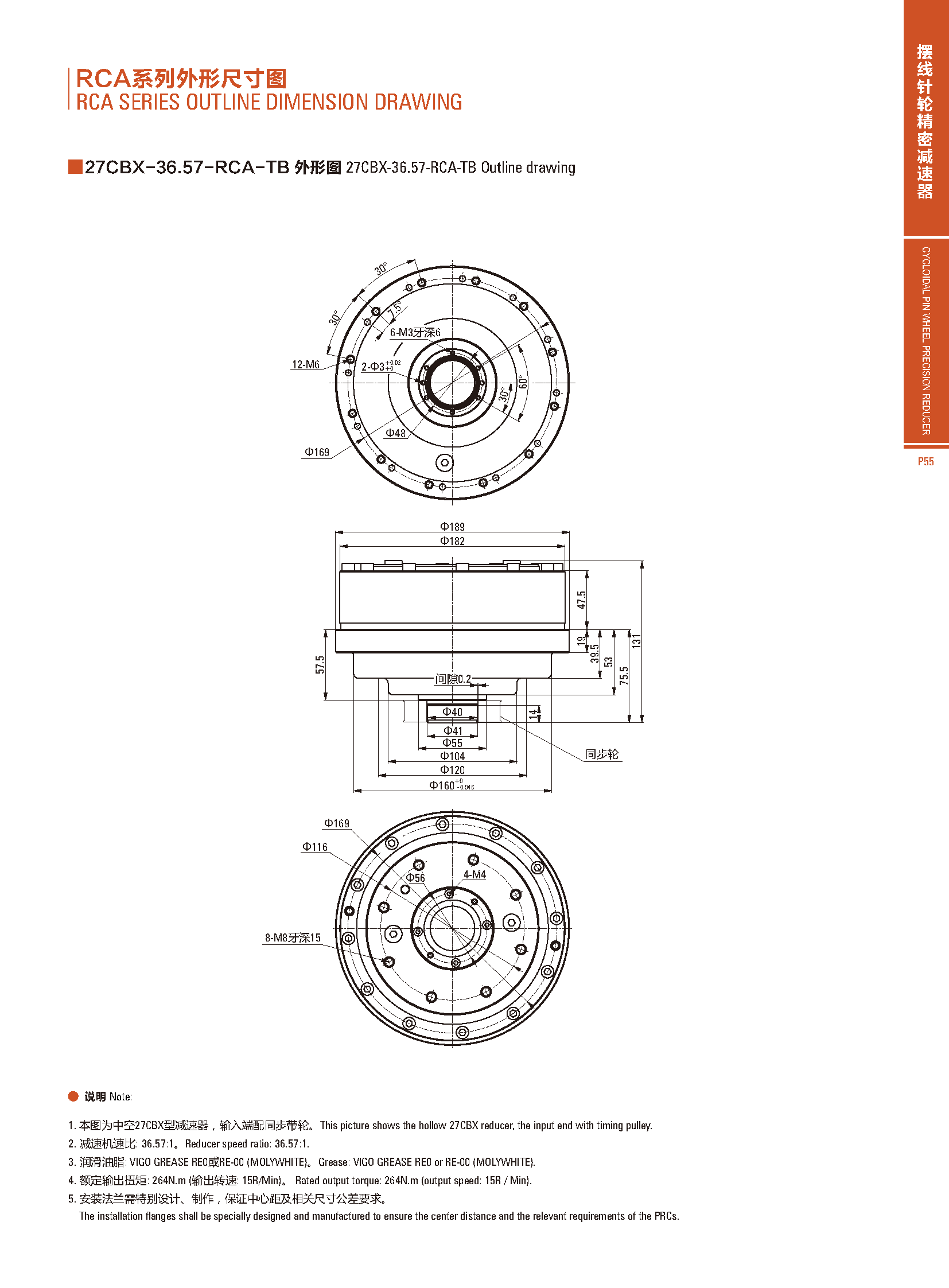

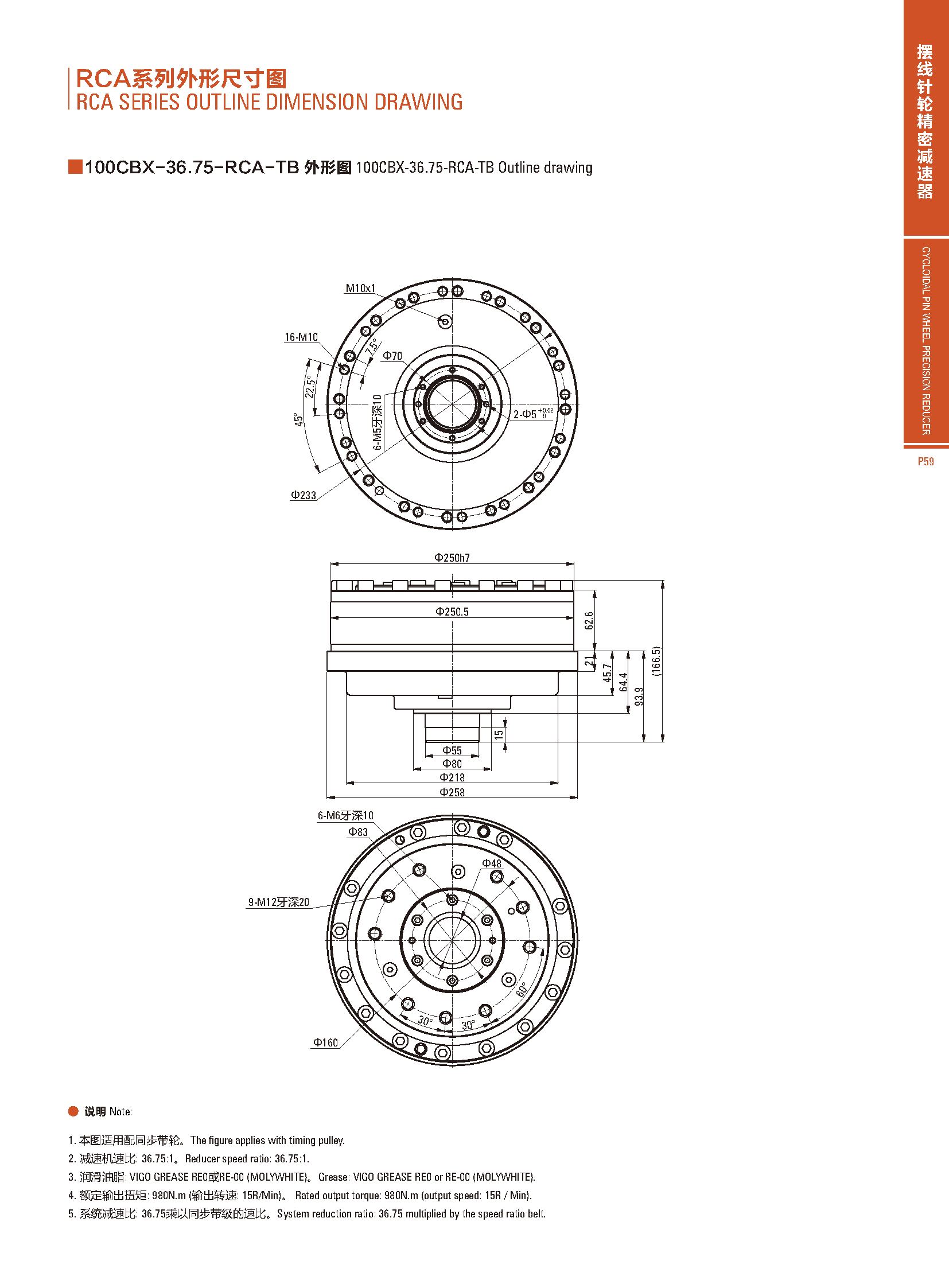

Structural Types: Hollow / Input Flange / Timing Pulley
Lubrication method: VIGO GREASE RE0 or RE-00 (MOLYWHITE)
Optional configurations: center gear, custom input gear, synchronous pulley
Typical Use Cases
Industrial robot joints, robotic rotary axes, automation equipment, precision rotary tables, welding positioners, handling systems, and other industrial equipment requiring high torque, high reduction ratios, and precision transmission.
