4IK25GN Series 2 5W Micro AC Induction Gear Motor
Model:4IK25GN Series (4IK25GN-A / E / C / H / S / S3 and Terminal Box Models)
Origin:Made in China
The product offers two wiring options: wire-type and terminal box-type.
Also available in gear shaft or round shaft configurations.
After pairing with the 4GN series parallel shaft gearbox, the reduction ratio ranges from 3 to 200.
Meets varying speed and output torque requirements.
Product Overview
The 4IK25GN series is a 5W, 80mm frame micro AC induction motor designed for use with parallel shaft gear reducers.
Supports single-phase and three-phase power. Features a compact design, stable continuous operation, low noise, and a wide range of gear ratio options.
Suitable for small-scale industrial automation equipment.

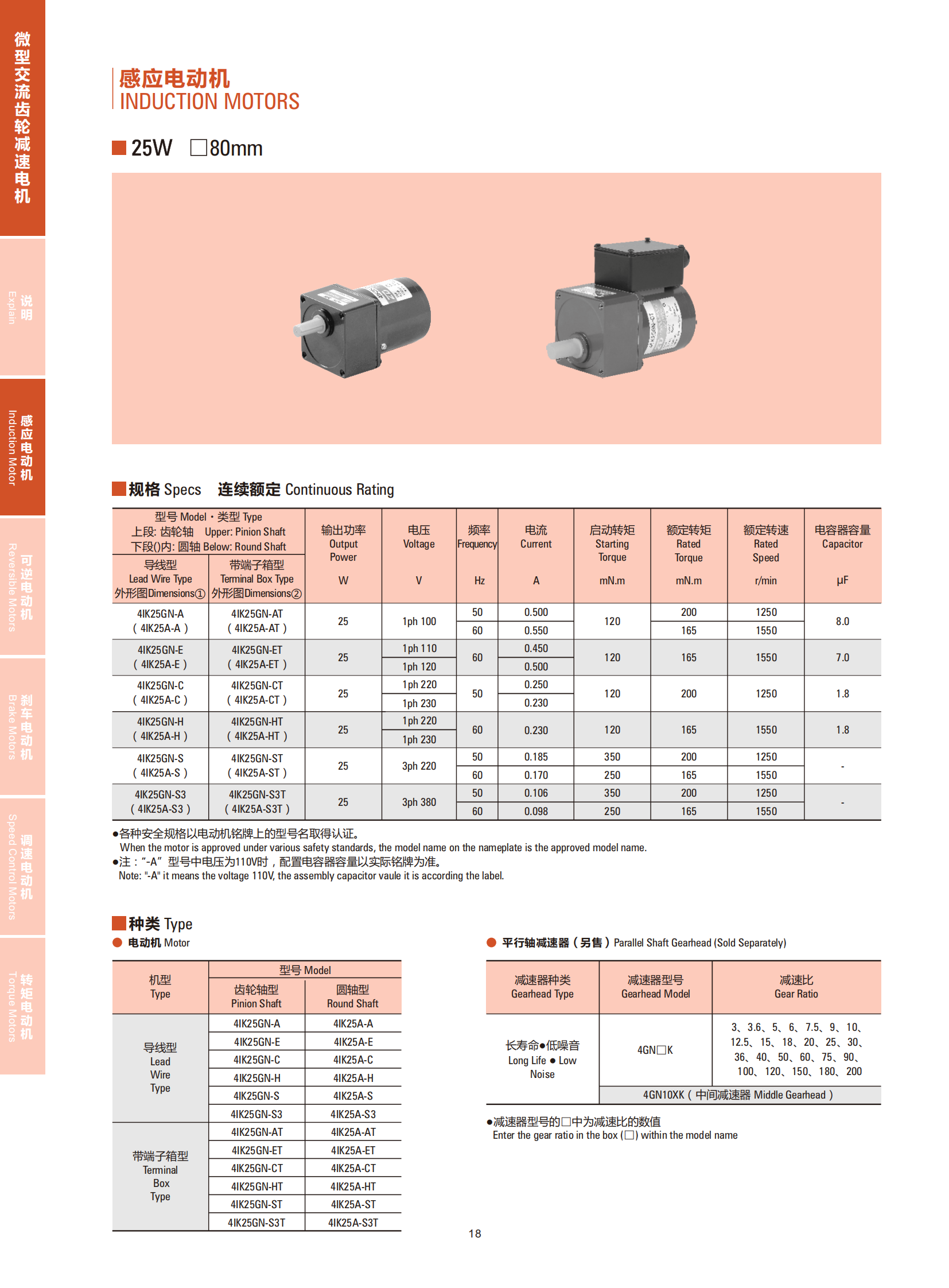

Product Specifications
Product Series: 4IK25GN Series
Motor Type: AC Induction Motor
Output Power: 25W
Base dimensions: 80mm
Operating Mode: Continuous Rated
Power: Single-phase 100 / 110 / 120 / 220 / 230V; Three-phase 220 / 380V
Frequency: 50Hz / 60Hz
Rated Speed: 1250rpm (50Hz) / 1550rpm (60Hz)
Rated Torque: Approximately 200 mN·m (@ 50 Hz) / 165 mN·m (@ 60 Hz)
Reducer Model: 4GN□K

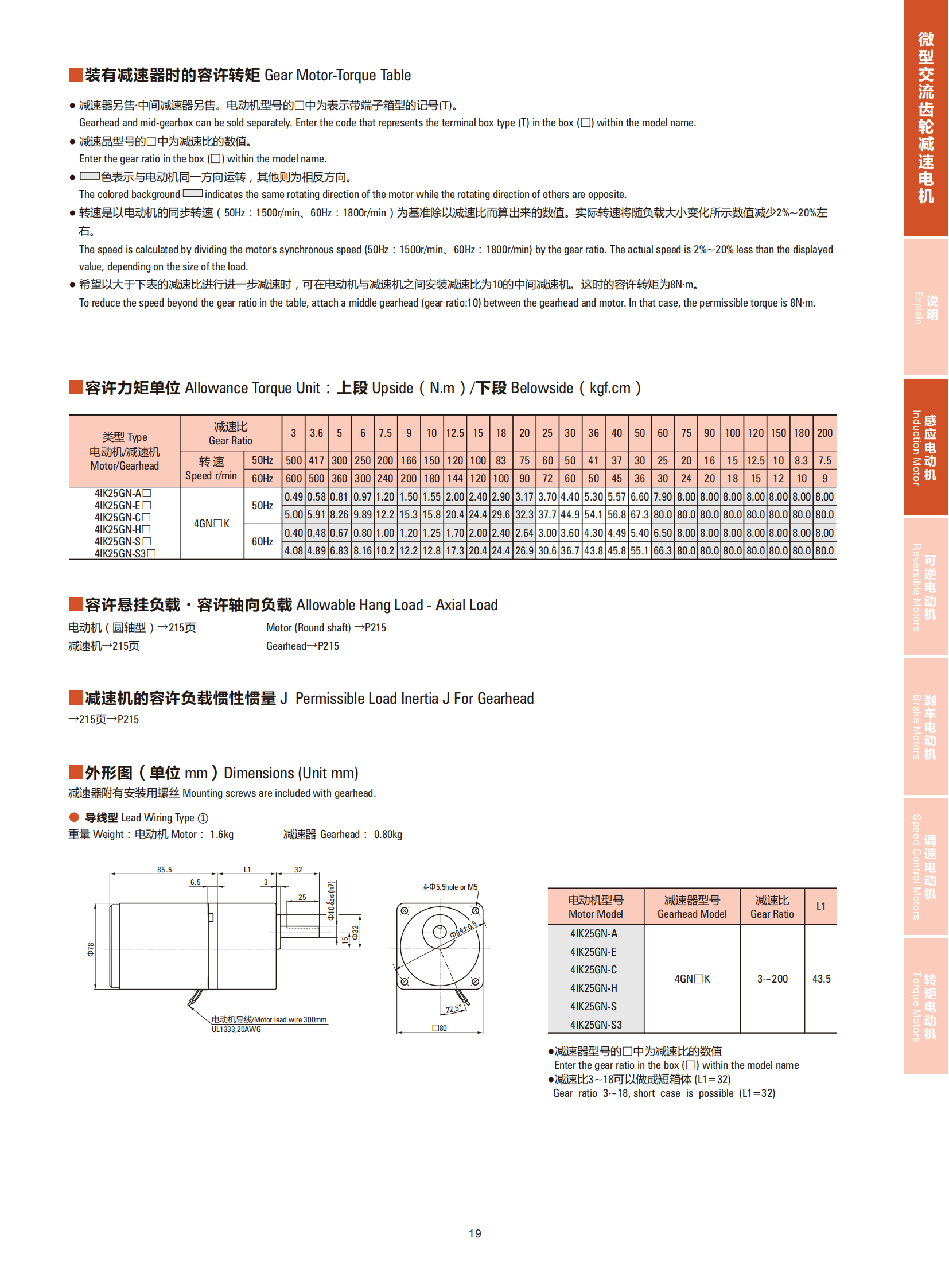

Gear Ratio: 3～200
Maximum allowable output torque: approximately 8 N·m
Structure Type: Gear Shaft / Round Shaft

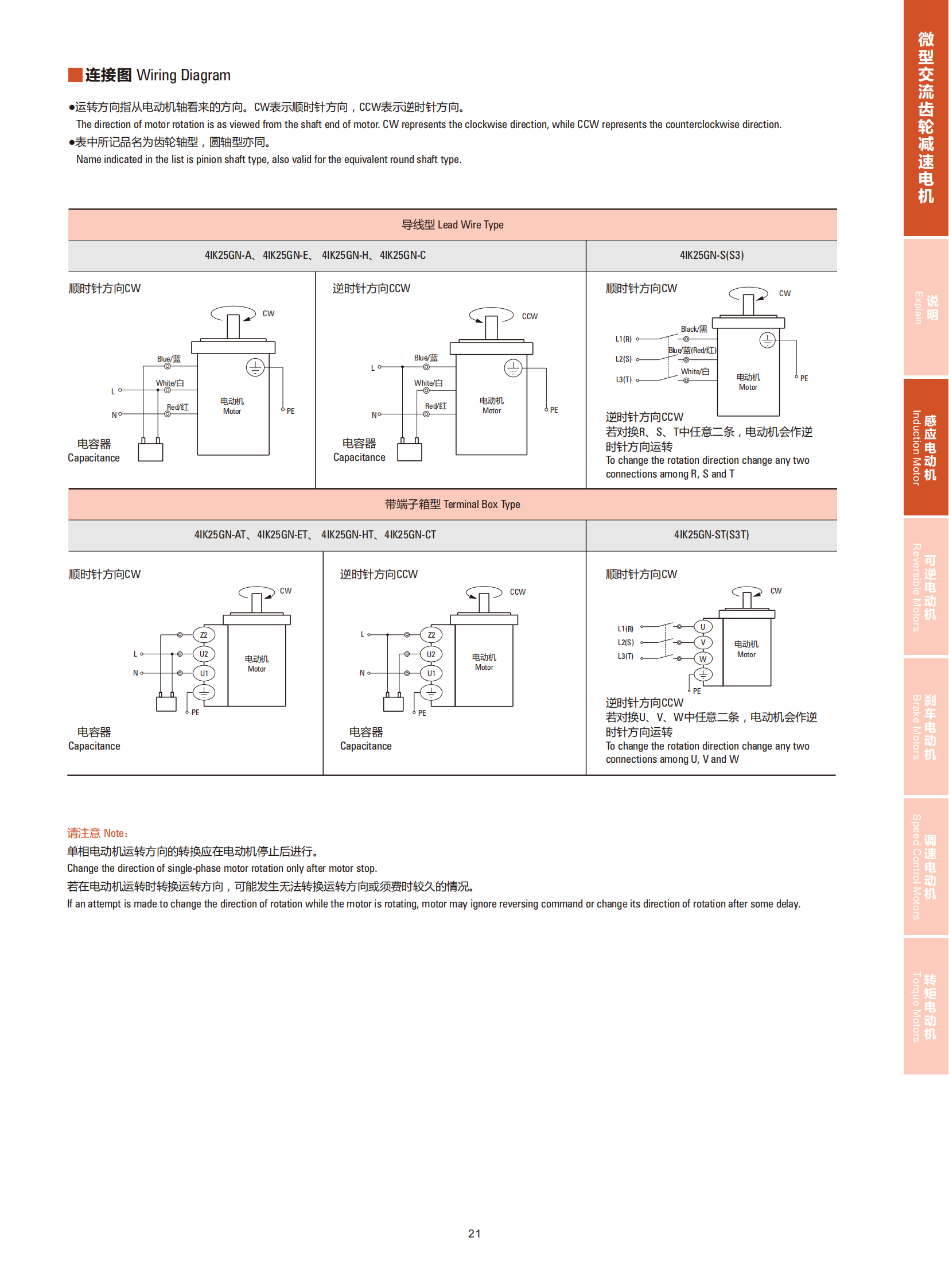

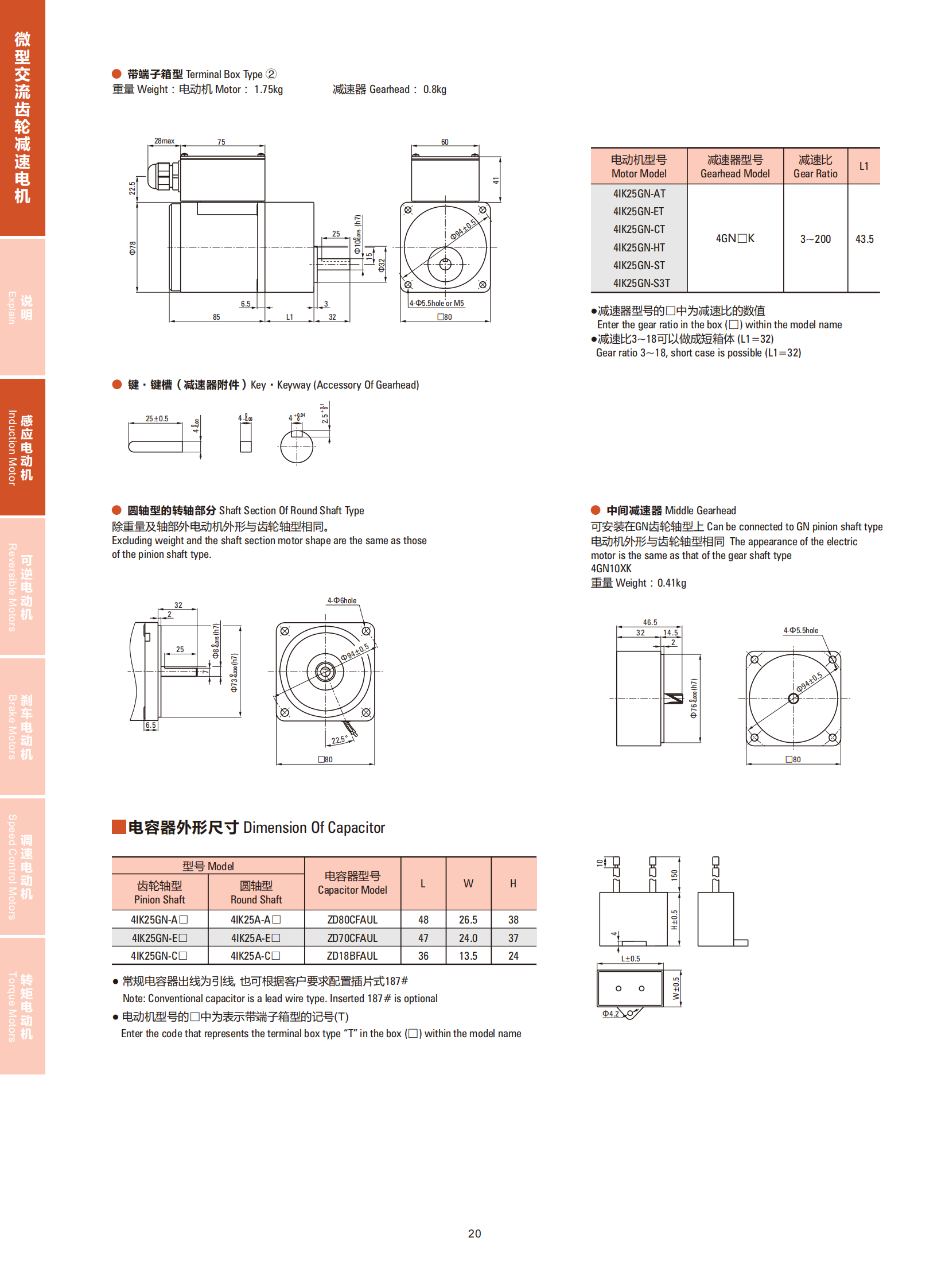

Connection type: Wire-type / Terminal box-type
Intermediate reducer: 4GN10XK available
Motor Weight: Approximately 1.6～1.75kg
Reducer weight: approx. 0.8 kg
Typical Use Cases
Automated equipment, small conveyors, packaging machinery, inspection equipment, food processing machinery, office automation equipment, and other small industrial equipment requiring continuous operation and low-speed reduction transmission.
