60 Series 2 5W Brushless DC Geared Motor
Model:Z2BLD25 Series (Z2BLD25-□GN-25S / Z2BLD25-□GNL-25S)
Origin:Made in China
Rated motor speed 2500rpm, rated torque 0.096N·m, peak instantaneous torque 0.144N·m.
Supports DC24V power, with optional DC36V / DC48V. AC110V / AC220V specifications are also available in the documentation.
The gear reducer offers a maximum reduction ratio of 200, enabling low-speed, high-torque output.
Product Overview
The 60 series brushless DC gear motors combine a brushless DC motor with a gearbox. The frame size is 60mm.
Rated power 25W. Features compact size, stable speed control, long service life, and easy maintenance.
Compatible with parallel shaft or L-type gear reducers to meet various installation space, speed, and torque requirements.

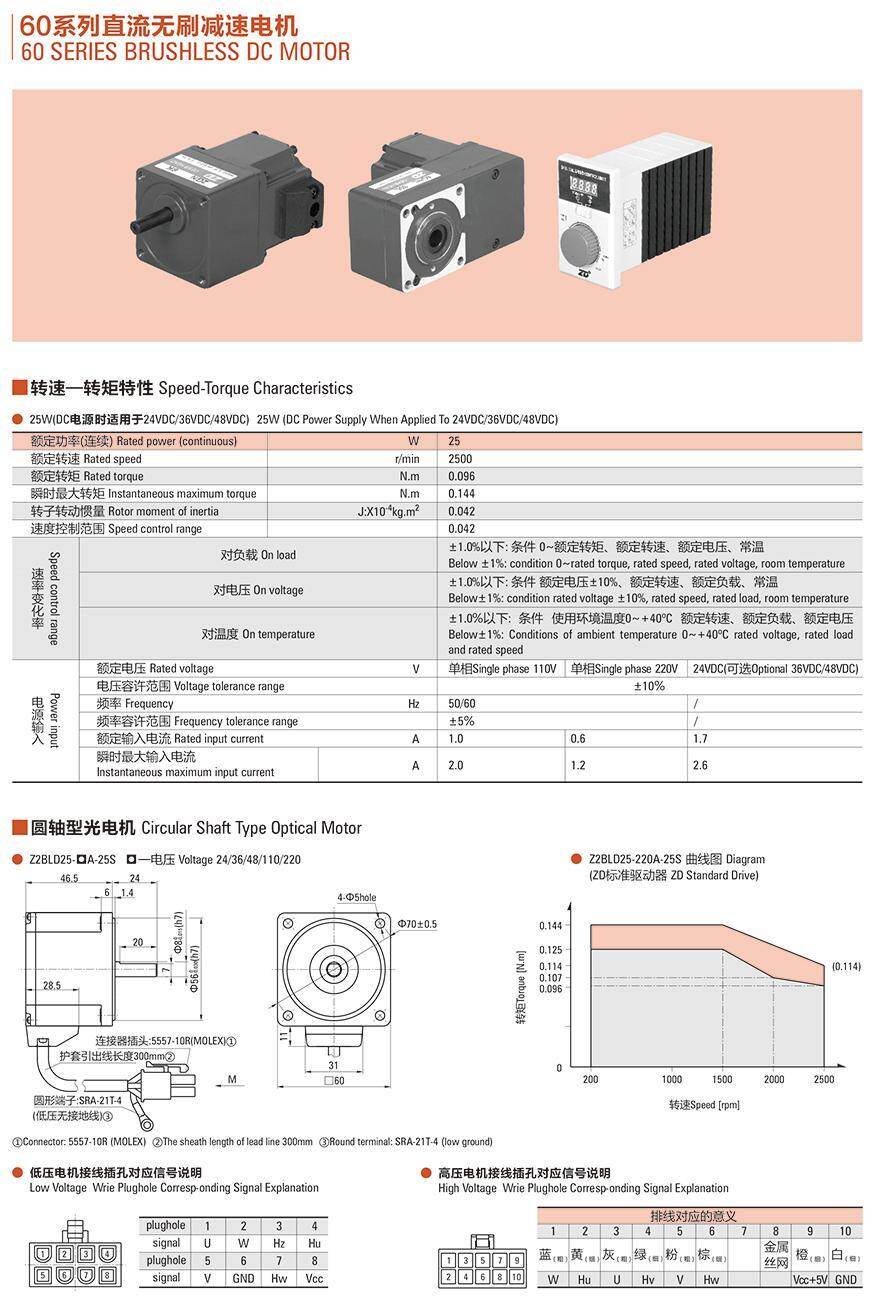

Product Specifications
Product Series: 60 Series
Motor Type: Brushless DC Motor
Rated Power: 25W
Base dimensions: 60mm
Rated Speed: 2500 rpm
Rated Torque: 0.096N·m
Peak instantaneous torque: 0.144N·m
Power: DC24V (DC36V / DC48V optional); AC10V / AC20V options available
Voltage tolerance: ±10%

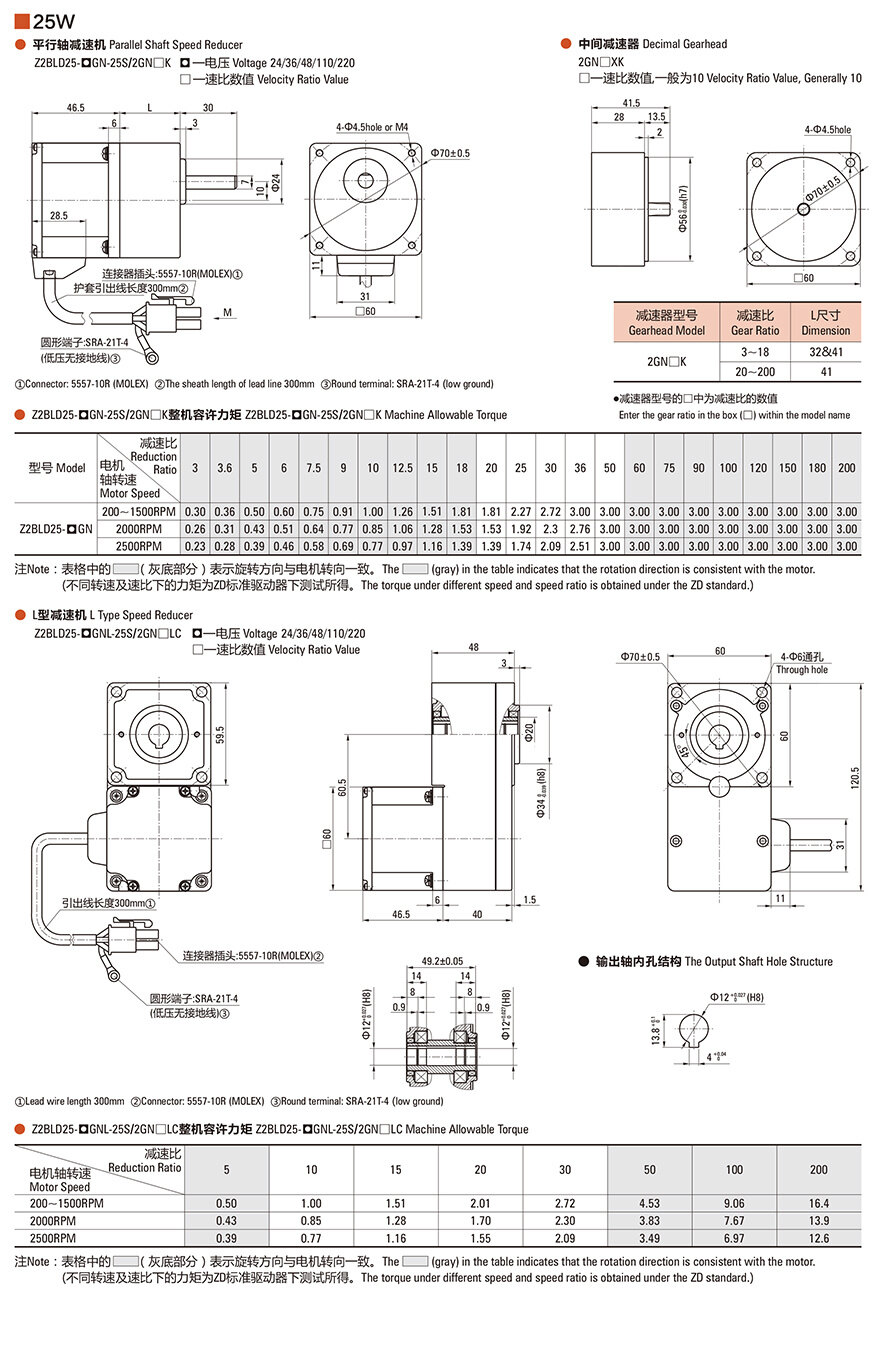

Parallel Shaft Gearbox: 2GN□K
Parallel shaft reduction ratio: 3～200
L-Reduction Gearbox: 2GN□LC
L-type gear ratio: 5 / 10 / 15 / 20 / 30 / 50 / 100 / 200
Intermediate reducer: 2GN10XK, reduction ratio 10
Maximum allowable torque for parallel shaft: approx. 3 N·m
L-type reducer maximum allowable torque: up to approximately 16.4 N·m
Control method: Speed regulation via compatible brushless motor driver
Typical Use Cases
Small automation equipment, conveying systems, packaging machinery, logistics sorting equipment, inspection devices, medical equipment, and other industrial equipment requiring compact design, speed control, and low-speed high-torque output.
