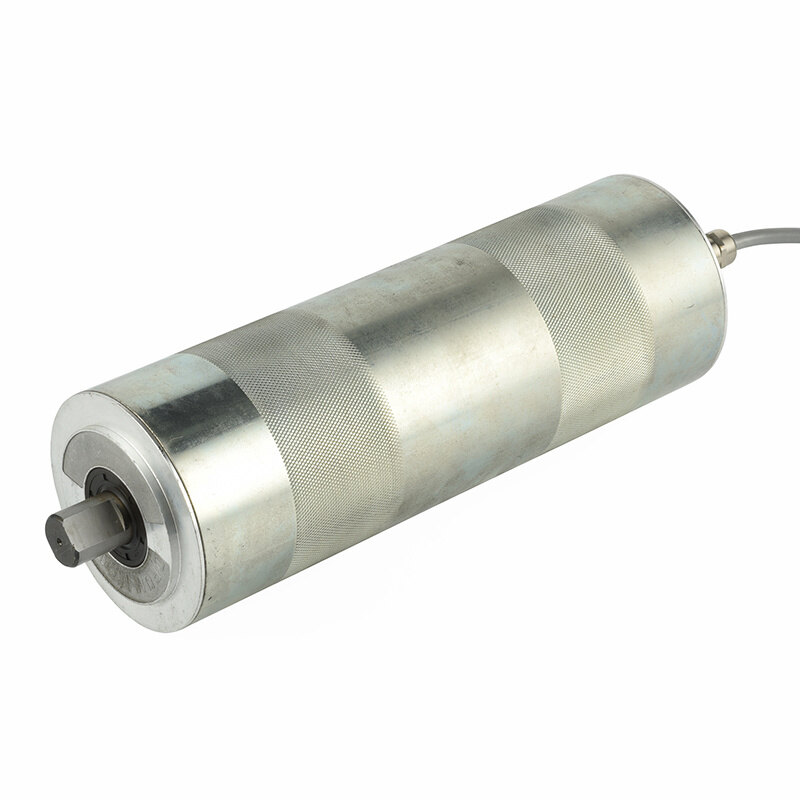

138 AC Motorized Drum
Model:138 Series AC Drum Motor
Origin:Made in China
The product features an oil-immersed motor cooling system, Class F insulation, and overheating protection. The shaft end utilizes a dual-seal structure.
Protection rating up to IP66. Standard cylinder is made of galvanized low-carbon steel; SUS304 food-grade stainless steel cylinders are also available.
Also supports customization of belt speed, drum length, and non-standard specifications.

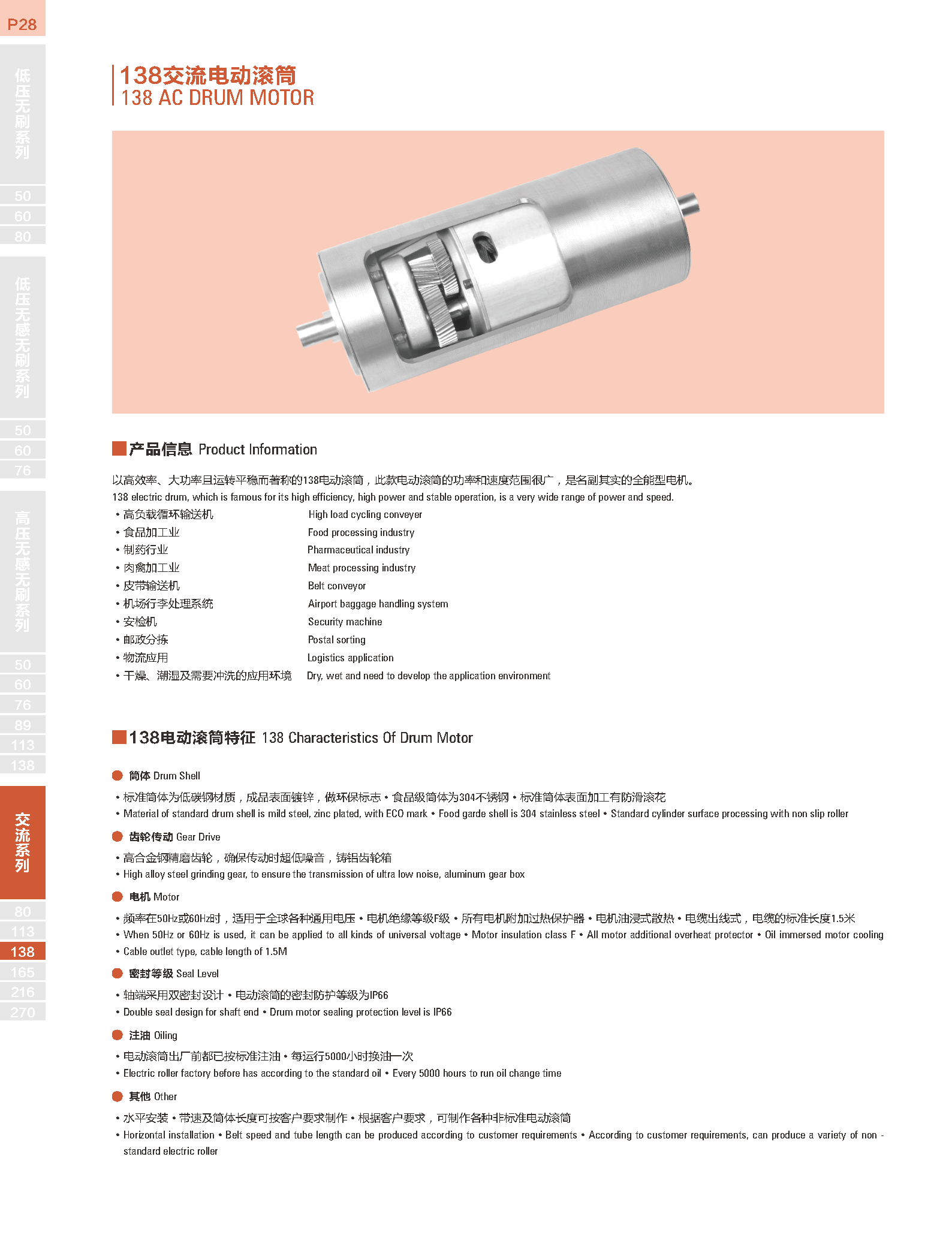

Product Overview
The 138 AC motor drum features high efficiency, high power output, smooth operation, and a wide speed range.
Equipped with precision-ground high-alloy steel gears and a cast aluminum gearbox, ideal for heavy-duty and continuous-operation conveyor systems.

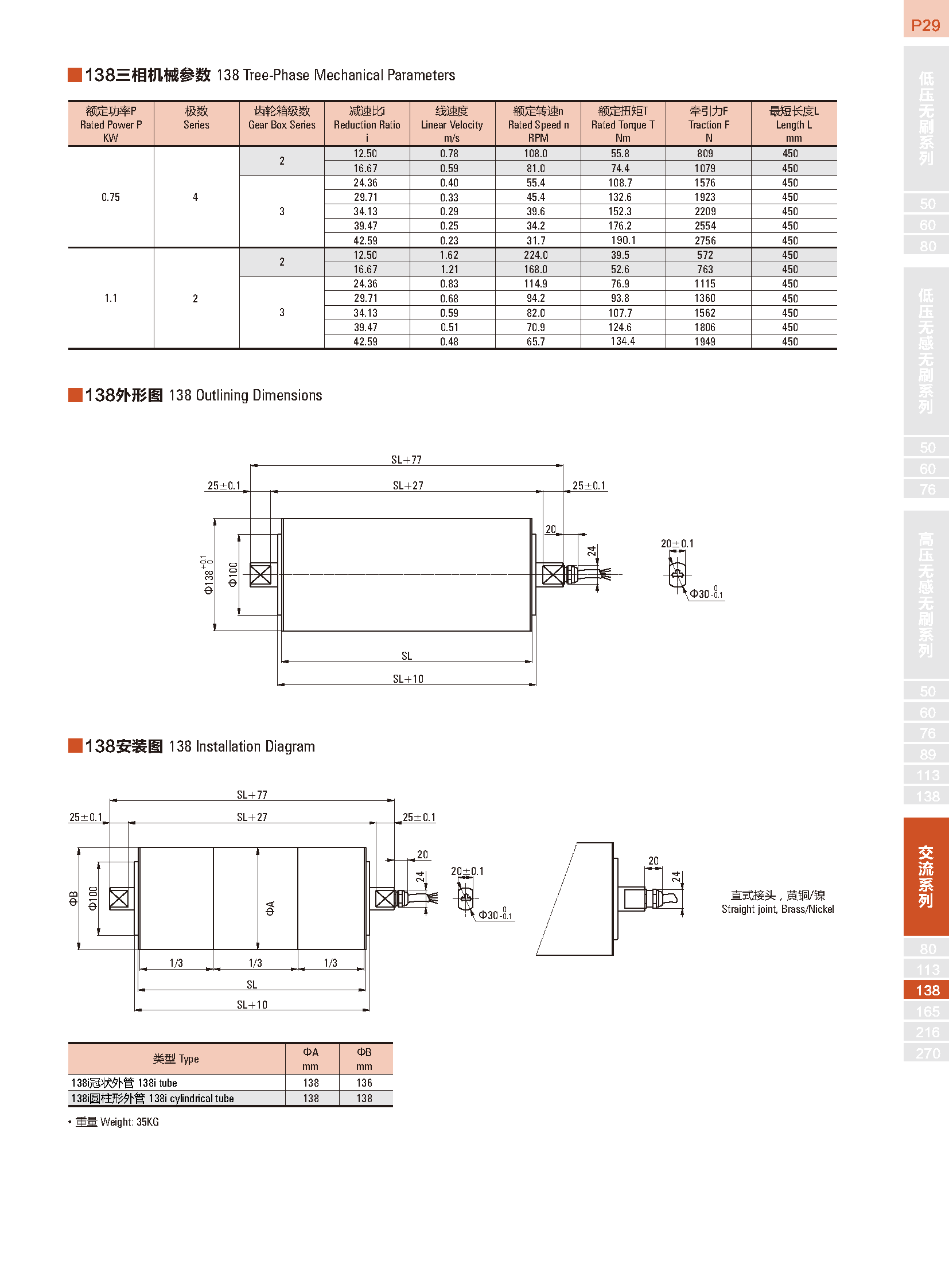

Product Specifications
Product Series: 138 AC Series
Product Type: AC Electric Drum
Cylinder diameter: Φ138mm
Rated Power: 0.75kW / 1.1 kW
Motor Poles: 2 / 4
Gear ratio: approximately 12.50–42.59
Linear speed: approx. 0.23～1.62m/s
Rated speed: approximately 31.7–224 rpm
Rated torque: up to 190.1N N·m
Traction: Up to 2756N
Minimum cylinder length: 450mm
Power Frequency: 50Hz / 60Hz
Insulation Class: F
Cooling method: Oil-immersed heat dissipation
Ingress Protection Rating: IP66
Standard cable length: 1.5m
Cylinder material: Galvanized low-carbon steel / SUS304 stainless steel
Installation Method: Horizontal
Oil change interval: approximately 5000 hours
Weight: approx. 35kg
Typical Use Cases
Heavy-duty conveyor systems, food processing equipment, pharmaceutical machinery, meat and poultry processing lines, belt conveyors, airport baggage handling systems, X-ray security scanners, postal sorting facilities, logistics conveyors, and environments requiring dry, wet, or washdown conditions.
