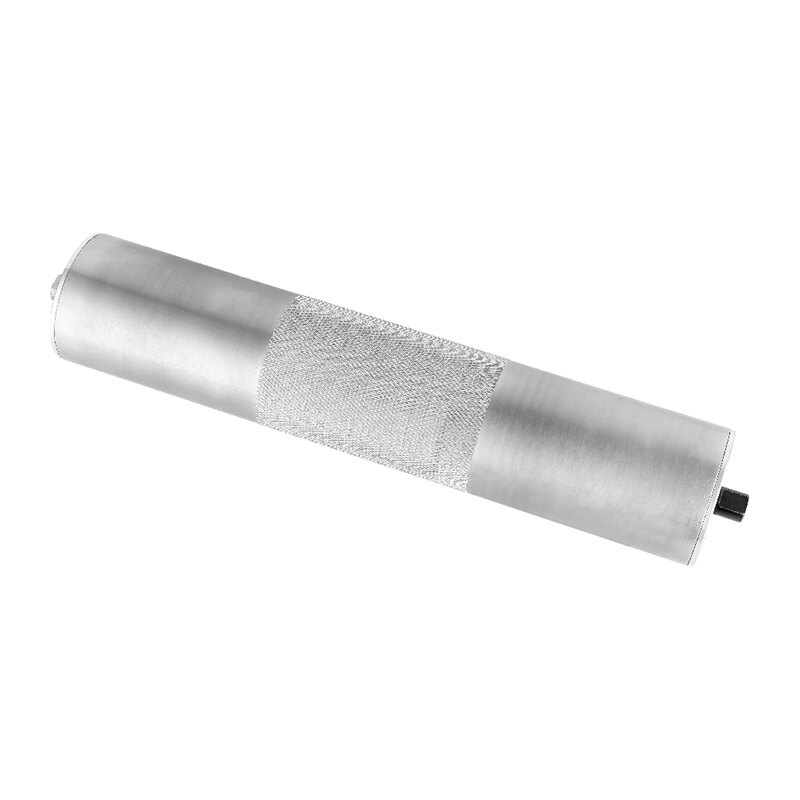

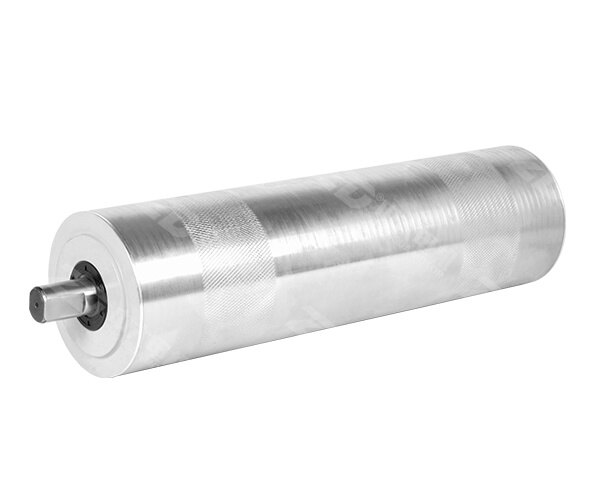

165 AC Motorized Drum
Model:165 Series AC Drum Motor
Origin:Made in China
The product features high-alloy steel precision-ground gears and a cast iron gearbox. The motor uses oil-immersion cooling.
F-class insulation and overload protection design. Dual-sealed shaft end with IP66 rating.
Also supports customization of belt speed, drum length, and non-standard specifications.

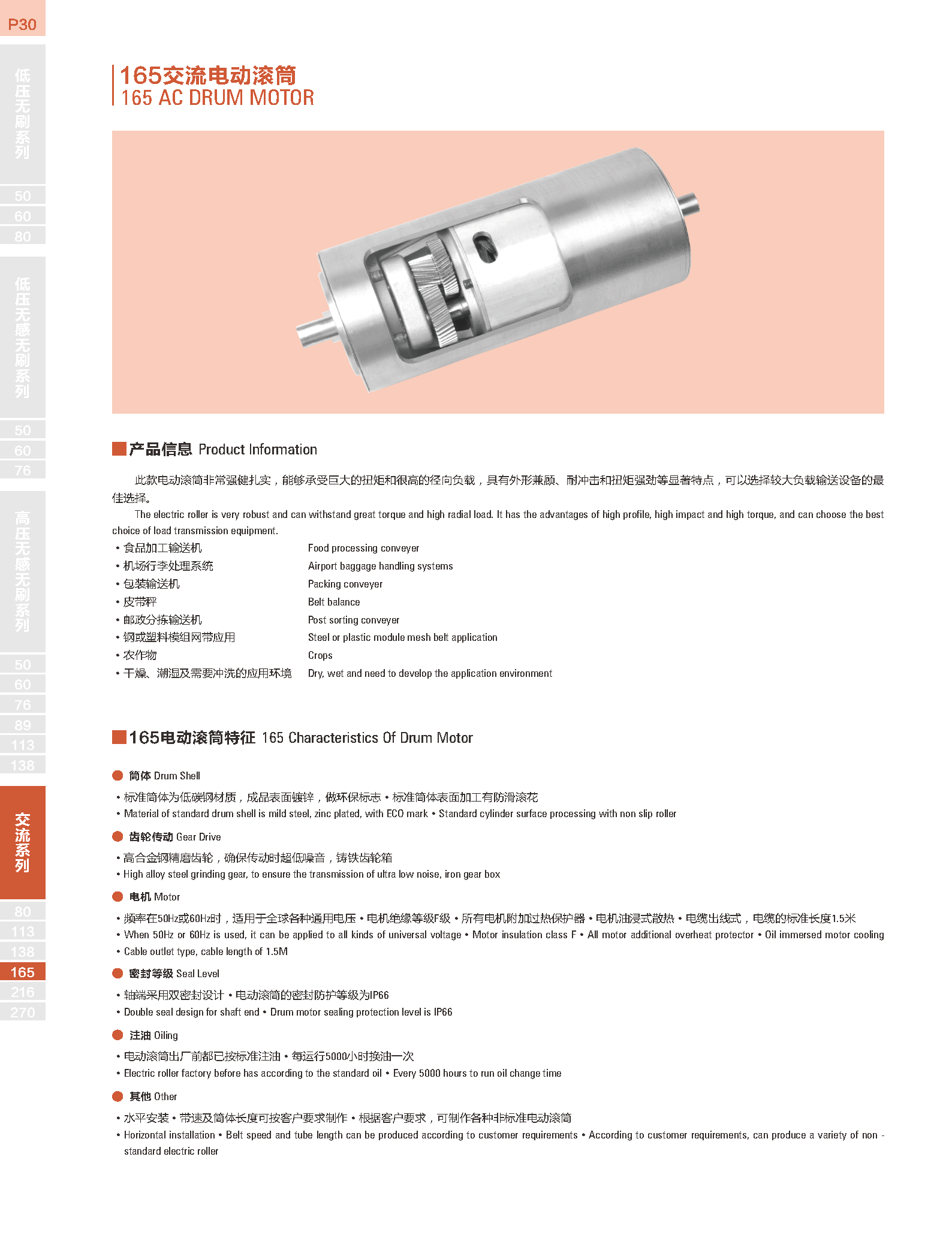

Product Overview
The 165 AC drum motor is designed for high-load conveyor equipment, featuring a robust structure and high torque.
High radial load capacity and excellent impact resistance for heavy-duty, continuous industrial conveyor systems.

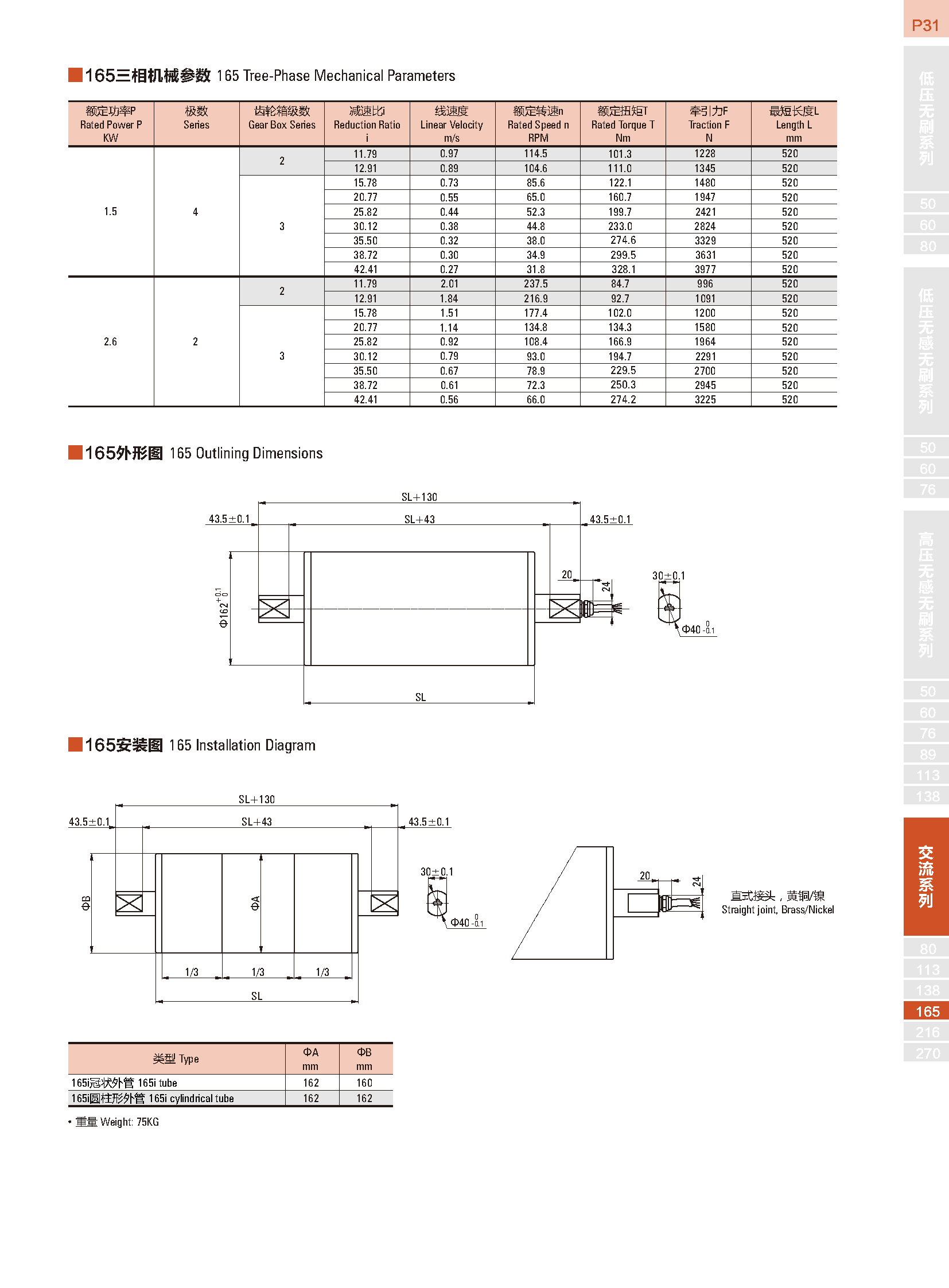

Product Specifications
Product Series: 165 AC Series
Product Type: AC Electric Drum
Cylinder diameter: approx. Φ162 mm
Rated Power: 1.5kW / 2.6kW
Motor Poles: 2 / 4
Gear ratio: approximately 11.79–42.41
Linear speed: approx. 0.27～2.01m/s
Rated Speed: Approximately 31.8–237.5rpm
Rated torque: up to 328.1N N·m
Traction: Up to approximately 3977N
Minimum cylinder length: 520mm
Power Frequency: 50Hz / 60Hz
Insulation Class: F
Cooling method: Oil-immersed heat dissipation
Ingress Protection Rating: IP66
Standard cable length: 1.5m
Cylinder Material: Galvanized Low-Carbon Steel
Installation Method: Horizontal
Oil change interval: approximately 5000 hours
Weight: approx. 75kg
Typical Use Cases
Food processing conveyors, airport baggage handling systems, packaging conveyors, belt weighers, postal sorting conveyors, steel or plastic modular belts, and agricultural product conveying in dry, wet, or rinse-required environments.
