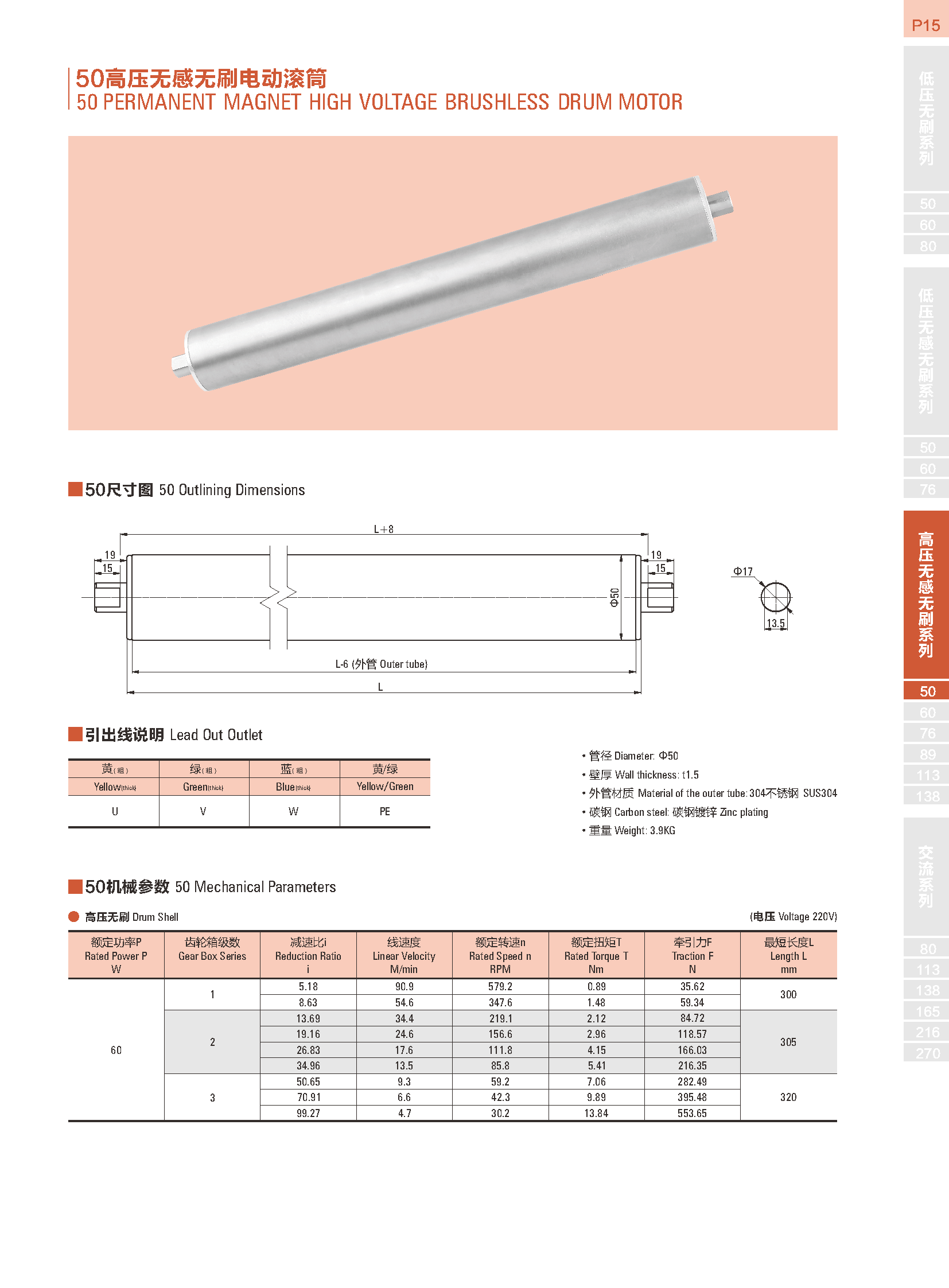

50 High-voltage sensorless brushless electric drum
Model:50 Series Permanent Magnet High-Voltage Brushless Drum Motor
Origin:Made in China
Rated power: 60W; rated voltage: 220V. Multiple reduction ratios and output speeds available.
The outer tube is available in SUS304 stainless steel or galvanized carbon steel, with a weight of approximately 3.9 kg. It can be selected based on different conveying requirements.
Select based on speed and torque requirements.
Product Overview
The 50 high-voltage sensorless brushless electric drum features a permanent magnet brushless drive structure. With a drum diameter of only Φ50mm, it offers a compact design and...
Compact design, smooth operation, and easy installation make it ideal for small-scale conveyor systems and space-constrained automated applications.
Product Specifications
Product Series: 50 High-Voltage Sensorless Brushless Series
Product Type: Permanent Magnet High-Voltage Sensorless Brushless Electric Drum
Cylinder Diameter: Φ50 mm
Rated Power: 60W
Rated Voltage: 220V
Gearbox stages: 1 / 2 / 3
Gear Ratio: 5.18～99.27
Linear speed: approx. 4.7～90.9m/min
Rated Speed: Approximately 30.2–579.2rpm
Rated torque: approx. 0.89～13.84N·m
Towing Capacity: Approximately 35.62 to 553.65N
Minimum length: approximately 300–320 mm
Outer tube wall thickness: 1.5mm
Outer tube material: SUS304 stainless steel / galvanized carbon steel
Weight: approx. 3.9kg
Typical Use Cases
Belt conveyors, automated production lines, packaging equipment, sorting systems, logistics conveying equipment, and other conveying systems requiring compact installation space and drive structures.
