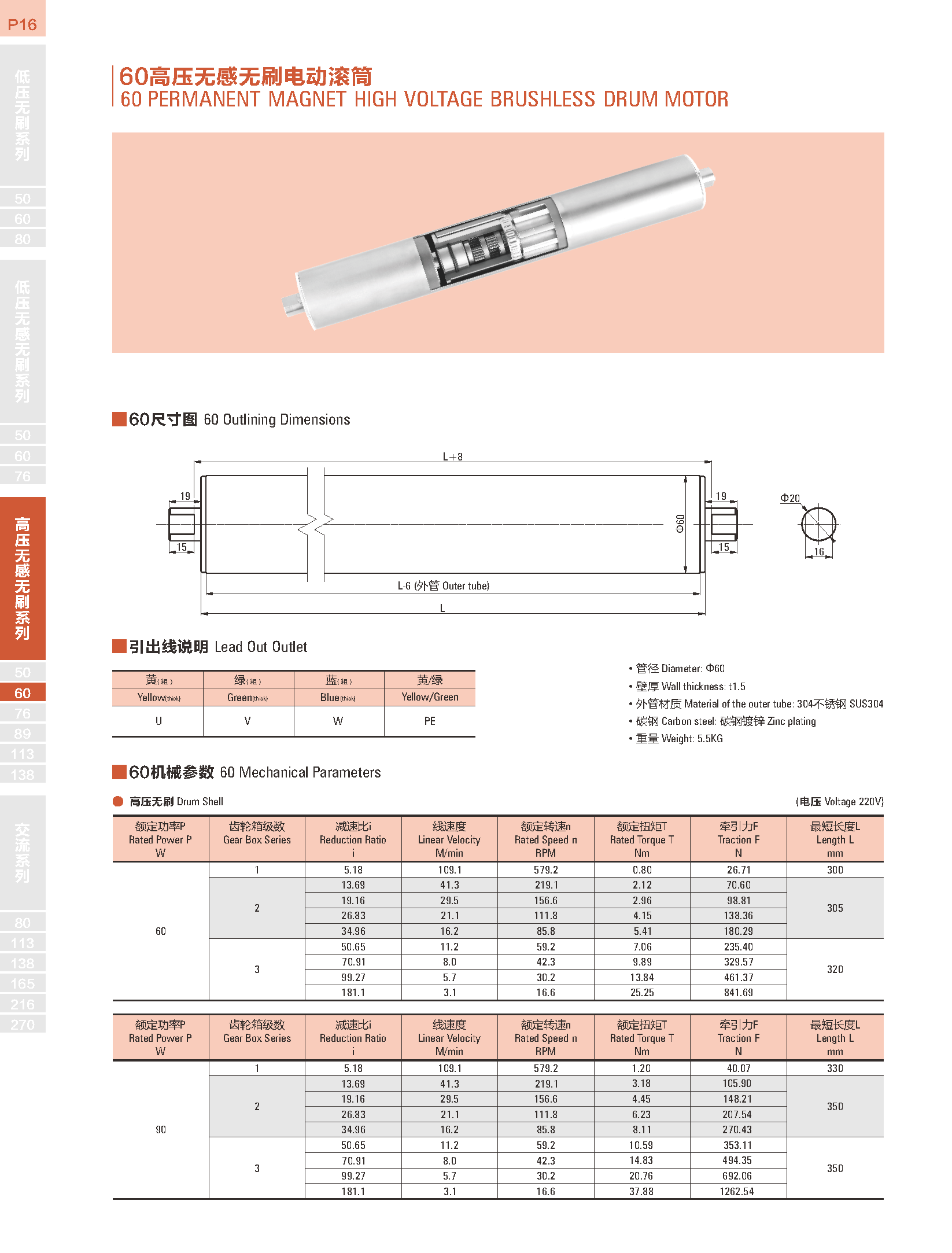

60 High-voltage sensorless brushless electric drum
Model:60 Series Permanent Magnet High-Voltage Brushless Drum Motor
Origin:Made in China
Rated voltage: 220V. Offers gear reduction structures at 1, 2, and 3 levels, with a reduction ratio range of 5.18–181.1.
The external tube is available in SUS304 stainless steel or galvanized carbon steel, featuring a compact size, wide speed range, and multiple output torque options.
Product Overview
The 60 high-voltage sensorless brushless electric drum features a permanent magnet brushless drive structure, has a drum diameter of Φ60 mm, and offers a compact design.
Available in 60W and 90W power ratings, with variable speed and output torque achieved through multi-stage gear reduction.
Ideal for automated conveyor systems with limited space.
Product Specifications
Product Series: 60 High-Voltage Sensorless Brushless Series
Product Type: Permanent Magnet High-Voltage Sensorless Brushless Electric Drum
Cylinder Diameter: Φ60 mm
Rated Voltage: 220V
Rated Power: 60W / 90W
Gearbox stages: 1 / 2 / 3
Gear Ratio: 5.18～181.1
Linear speed: approx. 3.1～109.1m/min
Rated Speed: Approximately 16.6–579.2rpm
Rated torque: 60W max 25.25N·m / 90W max 37.88N·m
Traction: 60W max 841.69N / 90W max 1262.54N
Minimum length: 60W approx. 300～320mm / 90W approx. 330～350mm
Outer tube wall thickness: 1.5mm
Outer tube material: SUS304 stainless steel / galvanized carbon steel
Weight: Approximately 5.5 kg
Typical Use Cases
Belt conveyors, automated production lines, packaging equipment, logistics sorting systems, conveying equipment, and other automation systems requiring compact installation space, wide speed control range, and a compact drive structure.
