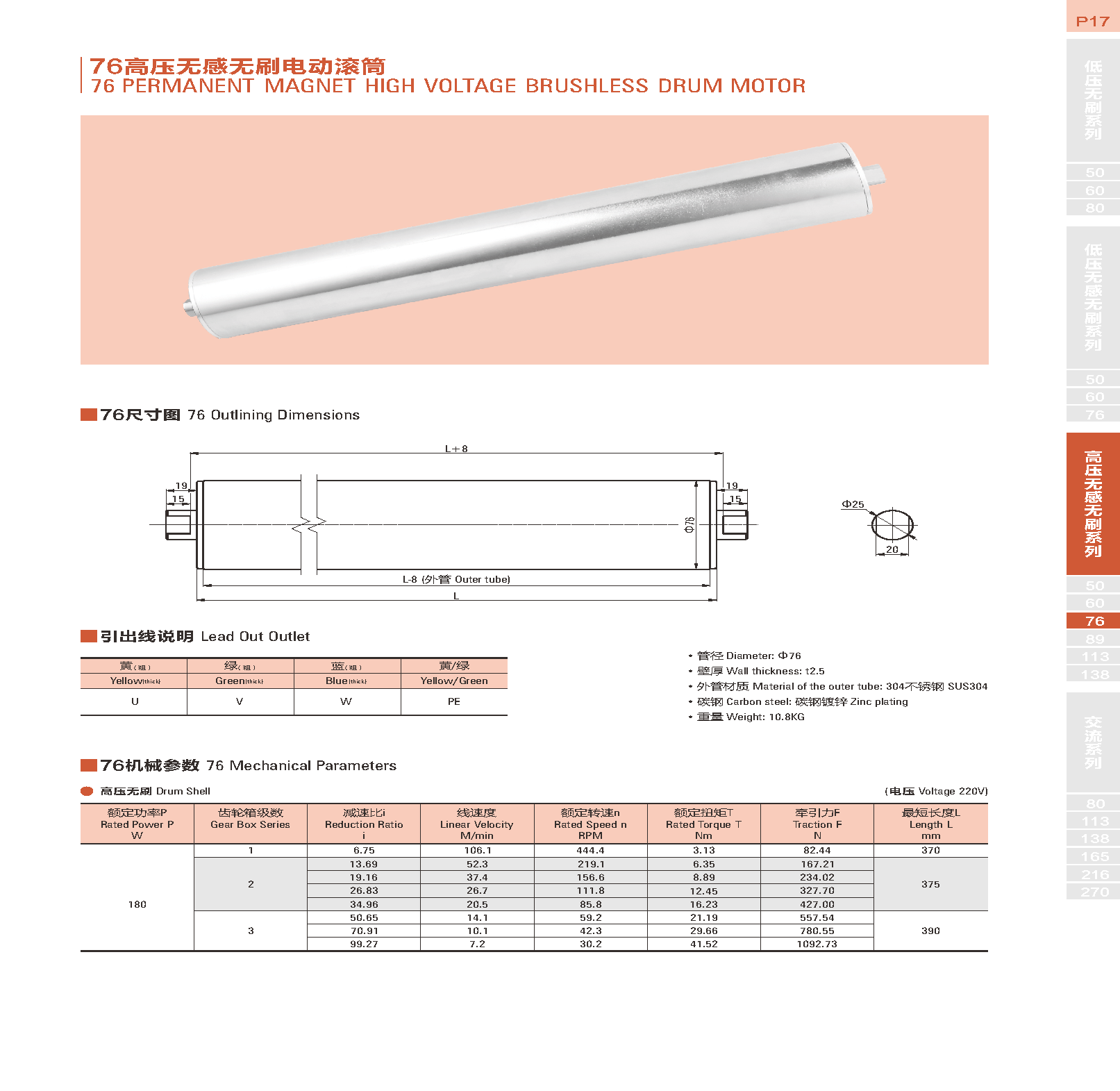

76 High-voltage sensorless brushless electric drum
Model:76 Series Permanent Magnet High-Voltage Brushless Drum Motor
Origin:Made in China
Rated voltage: 220V. Offers gear reduction structures at 1, 2, and 3 levels, with a reduction ratio range of 6.75–99.27.
The outer tube is available in SUS304 stainless steel or galvanized carbon steel, delivering high output torque, wide speed range, and compact installation.
Product Overview
76 High-voltage sensorless brushless electric drum features a permanent magnet brushless drive structure, with a drum diameter of Φ76mm and a rated power of 180W.
Compact design with multi-stage gear reduction for variable speeds and output torque, ideal for automated conveying and logistics drive systems.
Product Specifications
Product Series: 76 High-Voltage Sensorless Brushless Series
Product Type: Permanent Magnet High-Voltage Sensorless Brushless Electric Drum
Cylinder Diameter: Φ76mm
Rated Voltage: 220V
Rated Power: 180W
Gearbox stages: 1 / 2 / 3
Gear Ratio: 6.75～99.27
Linear speed: approx. 7.2～106.1m/min
Rated Speed: Approximately 30.2–444.4rpm
Rated torque: approx. 3.13～41.52N·m
Towing Capacity: Approximately 82.44 to 1092.73N
Minimum length: approximately 370–390 mm
Outer tube wall thickness: 2.5mm
Outer tube material: SUS304 stainless steel / galvanized carbon steel
Weight: Approximately 10.8kg
Typical Use Cases
Belt conveyors, automated production lines, logistics sorting equipment, packaging machinery, and other industrial conveying systems requiring compact structures, moderate power, and high output torque.
