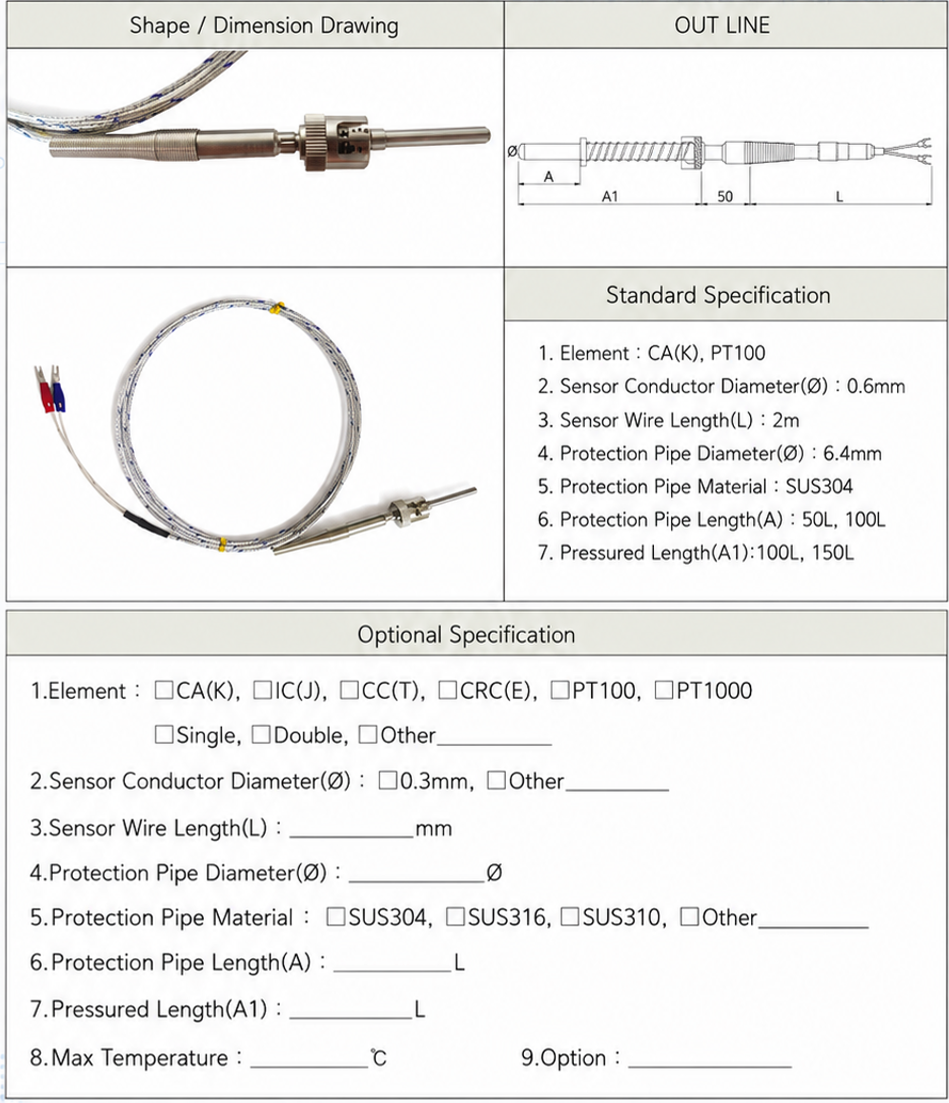

Standard Specifications
1. Temperature Sensor: CA (K), PT100
2. Sensor core wire diameter (Ø): 06mm
3. Sensor wire length (L): 2m
4. Conduit Diameter (Ø): 6.4mm
5. Protective Tube Material: SUS304
6. Thermowell Length (A): 50L, 100L
7. Tightened Length (A1): 100L, 150L

Optional Specifications

1. Temperature sensor: □CA(K), □IC(J), □CC(T), □CRC(E), □PT100, □PT1000
   □ Single, □ Double, □ Other

2. Sensor core wire diameter (Ø): □0.3mm, □ Other

3. Sensor wire length (L): mm

4. Conduit Diameter (Ø): Ø

5. Housing Material: □SUS304, □SUS316, □SUS310, □Other

6. Protective tube length (A): L

7. Maximum operating temperature: ℃

8. Other options:

For products and specifications not listed in the table above, please contact us for more information.
* Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
