Lead-type Temperature Sensor (I)
Model:TC-I
Origin:Made in Korea

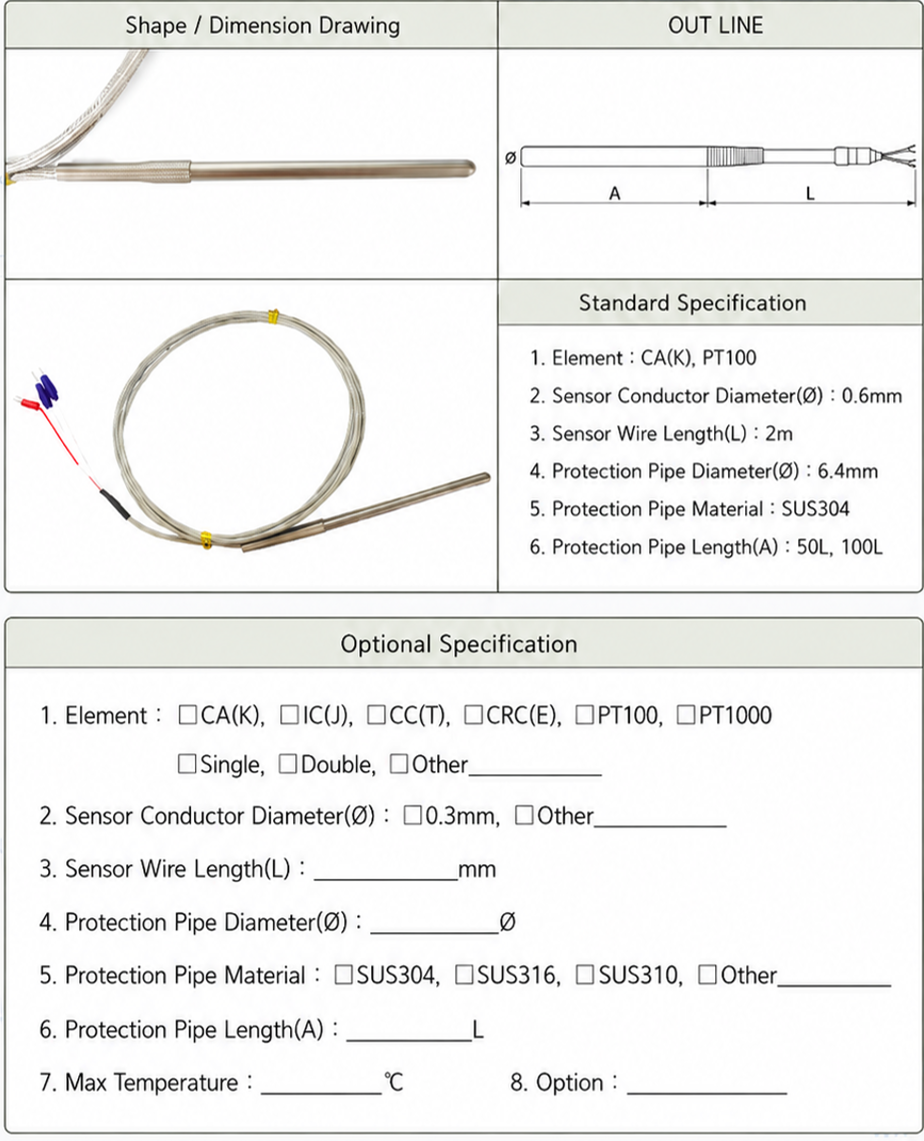

Standard Specifications
1. Temperature Sensor: CA(K), PT100
2. Sensor Core Wire Diameter (Ø): 0.6mm
3. Sensor cable length (L): 2m
4. Conduit Diameter (Ø): 6.4mm
5. Protective Tube Material: SUS304
6. Protection tube length (A): 50L, 100L
Product Overview
CA(K), IC(J), CC(T), CRC(E), PT100, PT1000
Single, Double, Other
※ Custom production available upon customer request.
Product Specifications
Optional Specifications
Temperature sensor: □CA(K), □IC(J), □CC(T), □CRC(E), □PT100, □PT1000
□ Single, □ Double, □ OtherSensor core wire diameter (Ø): □0.3mm, □ Other
Sensor wire length (L): mm
Conduit Diameter (Ø): Ø
Housing Material: □SUS304, □SUS316, □SUS310, □Other
Protective tube length (A): L
Maximum operating temperature: ℃
Other options:
For products and specifications not listed in the table above, please contact us separately.
* Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
Typical Use Cases
