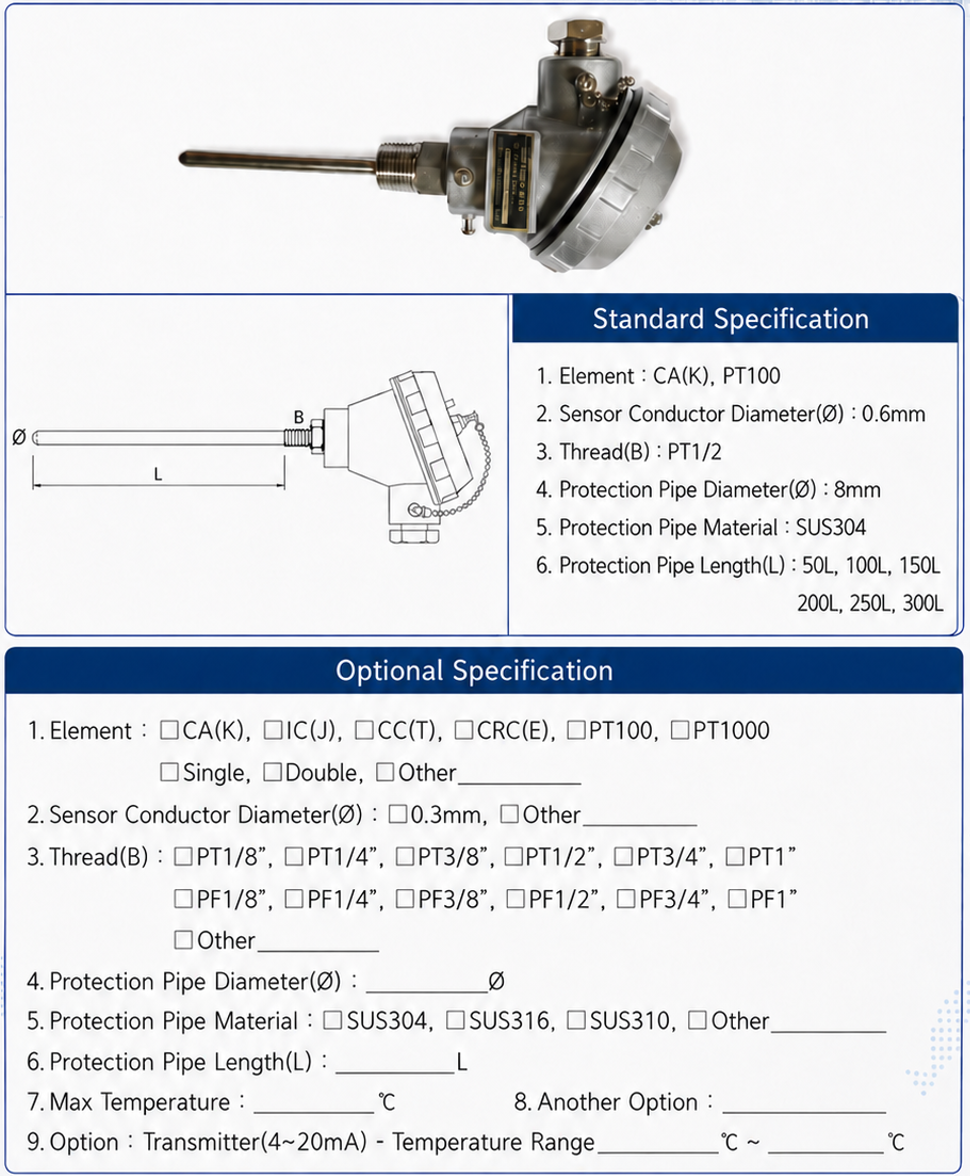

Standard Specifications

1. Temperature Sensor: CA (K), PT100
2. Sensor conductor diameter: 0 6mm
3. Thread Specification (B): PT1/2
4. Protective Tube Diameter (Ø): 8mm
5. Protective Tube Material: SUS304 Stainless Steel
6. Conduit Length (L): 50L, 100L, 150L, 200L, 250L, 300L

[Optional Specifications]

1. Temperature sensor: □CA(K), □IC(J), □CC(T), □CRC(E), □PT100, □PT1000
   □ Single, □ Double, □ Other

2. Sensor conductor diameter (Ø): □0.3mm, □ Other

3. Thread Specification (B): □PT1/8, □PT1/4, □PT3/8, □PT1/2, □PT3/4, □PT1
   □PF1/8, □PF1/4, □PF3/8, □PF1/2, □PF3/4, □PF1
   □ Other

4. Protective Tube Diameter (Ø): Customizable Ø

5. Protective tube material: □SUS304, □SUS310, □SUS316, □Other

6. Conduit Length (L): Customizable L

7. Maximum operating temperature: customizable ℃

8. Other options: customizable

9. Optional configuration: Transmitter (4‑2 mA), Temperature range: ℃ ~ ℃

For products and specifications not listed in the table above, please contact us for more information.
※ Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
