Wire Temperature Sensor (R)
Model:TC-R
Origin:Made in Korea

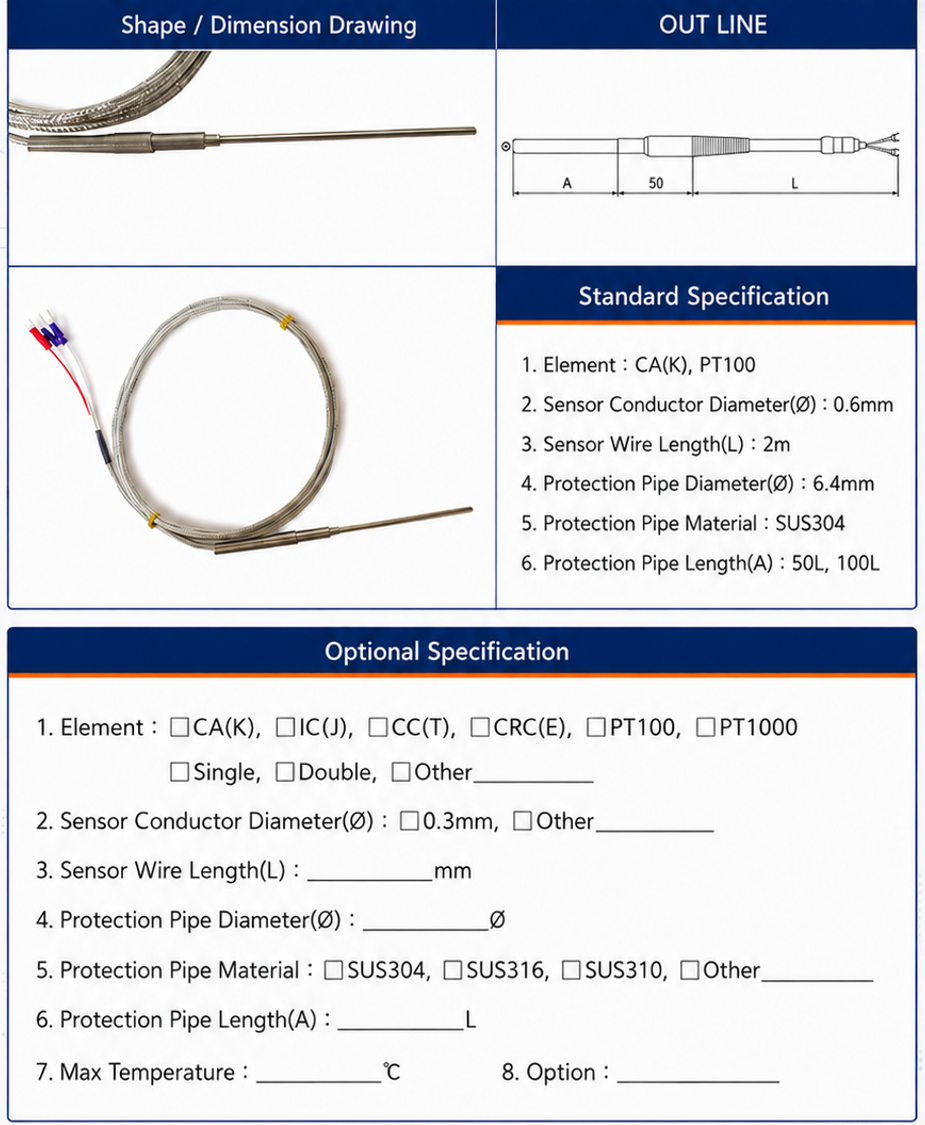

Standard Specifications
1. Temperature Sensor: CA (K), PT100
2. Sensor core wire diameter (Ø): 06mm
3. Sensor wire length (L): 2m
4. Conduit Diameter (Ø): 6.4mm
5. Protective Tube Material: SUS304
6. Thermowell Length (A): 50L, 100L
Product Overview
CA(K), IC(J), CC(T), CRC(E), PT100, PT1000, Single, Double, Other
※ Custom production available upon customer request.
Product Specifications
[Optional Specifications]
Temperature sensor: □CA(K), □IC(J), □CC(T), □CRC(E), □PT100, □PT1000
□ Single, □ Double, □ OtherSensor core wire diameter (Ø): 0.3mm, others
Sensor Wire Length (L): ________ mm
Conduit Diameter (Ø): Ø
Conduit material: SUS304, SUS316, SUS310, Other
Protective tube length (A): L
Maximum operating temperature: °C
Other options:
For products and specifications not listed in the table above, please contact us separately.
* Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
