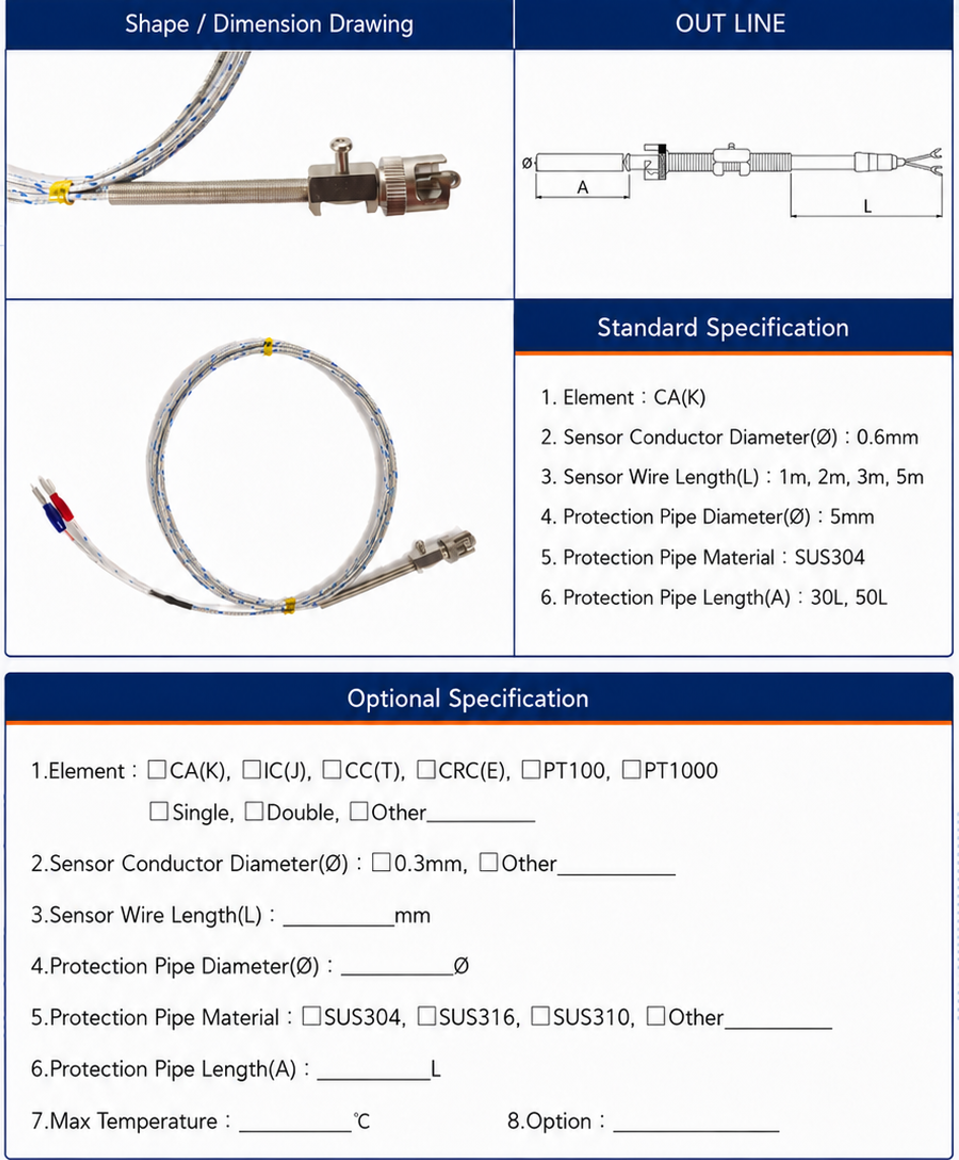

Standard Specifications

1. Temperature Sensor: Type K (CA (K))
2. Sensor conductor diameter: 0 6mm
3. Sensor cable length: 1m, 2m, 3m, 5m
4. Protective tube diameter: 5mm
5. Protective Tube Material: SUS304 Stainless Steel
6. Thermocouple protection tube length: 30L, 50L

[Optional Specifications]

1. Temperature sensor: □CA(K), □IC(J), □CC(T), □CRC(E), □PT100, □PT1000
   □ Single, □ Double, □ Other

2. Sensor conductor diameter: □0.3mm, □ Other

3. Sensor wire length (L): Customizable in mm

4. Conduit Diameter (Ø): Customizable Ø

5. Conduit material: □SUS304, □SUS316, □SUS310, □Other material

6. Protective tube length: customizable L

7. Maximum Operating Temperature: ℃

8. Other options:

For products and specifications not listed in the table above, please contact us for more information.
※ Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
