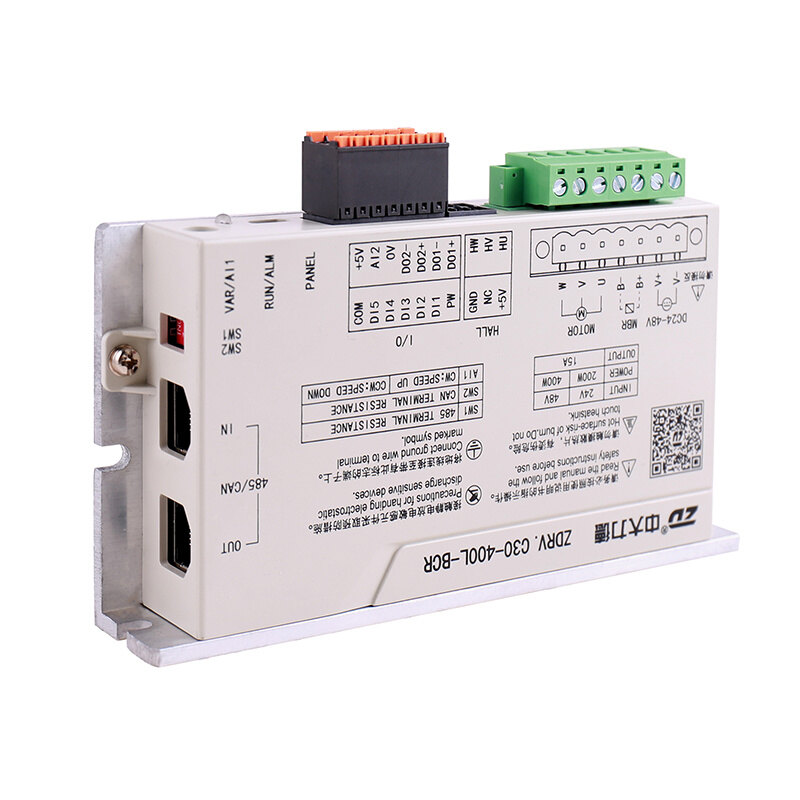

C30 Series Brushless Motor Driver

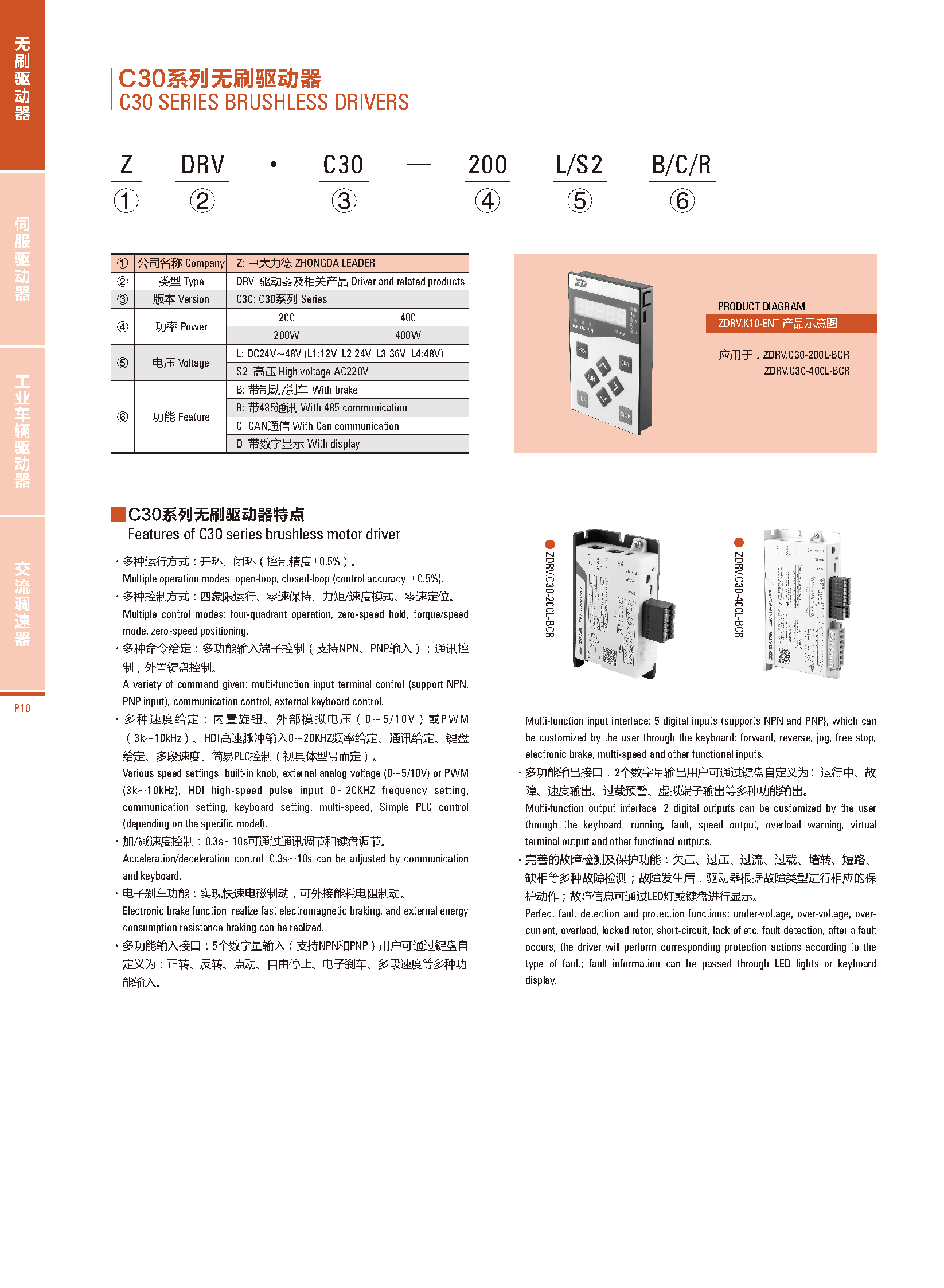

Model:C30 Series (ZDRV.C30-200L-BCR / ZDRV.C30-400L-BCR / ZDRV.C30-400S2-BCR)
Origin:Made in China
The C30 series supports DC 24～48V and AC 220V power specifications, compatible with brushless motors up to 400W.
Supports RS485, CAN communication, external keyboards, NPN/PNP digital I/O, HDI high-speed pulses, and electronic braking.
Product Overview
The C30 series brushless motor drivers provide speed, torque, and motion control for brushless motors.
Supports open-loop/closed-loop control, four-quadrant operation, multi-segment speed, analog speed adjustment, and communication control.
Offers high control precision and comprehensive fault protection; ideal for industrial automation and precision drive systems.

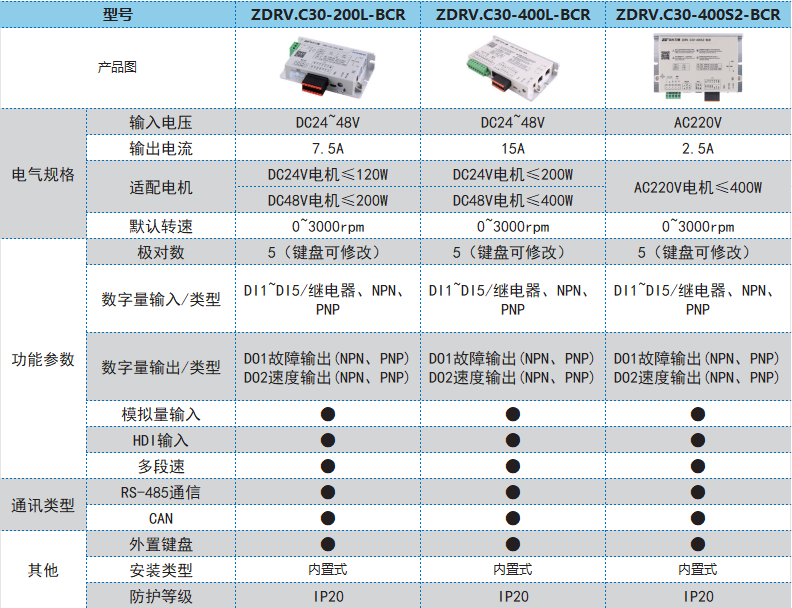

Product Specifications
Product Line: C30 Series
Product Type: Brushless Motor Driver
Main Models: ZDRV.C30-200L-BCR / ZDRV.C30-400L-BCR / ZDRV.C30-400S2-BCR
Input Voltage: DC24～48V / AC220V
Compatible motor power: up to 400W
Output current: 7.5A / 15A / 2.5A
Default speed range: 0～3000 rpm
Control Mode: Open-loop / Closed-loop
Control Accuracy: ±0.5% approx.
Operating Mode: Four-Quadrant / Torque / Speed / Zero-Speed Hold
Digital Inputs: 5 channels, supports NPN / PNP
Digital Output: 2 channels, supports NPN / PNP
Speed Control Mode: Built-in Knob / Analog 0–5V or 0–10V / PWM / HDI High-Speed Pulse / Multi-Step Speed / Communication
Communication Interface: RS85 / CAN
Acceleration/deceleration time: 0.3 to 10s, adjustable
Brake Function: Electronic Brake / External Braking Resistor
External keyboard: Supported
Installation Method: Built-in
Protection Rating: IP20
Protection functions: undervoltage, overvoltage, overcurrent, overload, stall, short circuit, phase loss, overheating, etc.
Typical Use Cases
Brushless motor control, industrial automation equipment, conveying systems, packaging machinery, logistics sorting systems, robotic assist mechanisms, and other industrial equipment requiring speed regulation, torque control, and communication control.
