Reducer
Motor and Drive System - Reducer
RCA Series Cycloidal Pinwheel Precision Reducer
The RCA series offers multiple structural configurations, including RCA and RCA-TB, supporting hollow shaft designs and synchronous belt drive options. Rated output speed is 15r/min, with rated output torque ranging from approximately 98 to 3160 N·m across different models. Selection is based on motor shaft diameter, gear ratio, and mounting method.
REA Series Cycloidal Precision Reducers
The REA series covers multiple frame sizes, with a rated output torque of approximately 58 to 3136 N·m and a rated output speed of 15r/min. Depending on the model, it supports motor shafts ranging from approximately 14 to 42 mm and offers various gear ratios. The motor mounting flange can be configured according to the compatible motor model.
RVC Series Cycloidal Pinwheel Precision Reducer
The RVC series offers multiple base and structural specifications, including standard RVC, RVC-P, and 320CA-RVC variants. Standard center gears are available, with input gears customizable to match servo motor shafts. The hollow structure supports low-speed tubes for cable routing and grease sealing within the reducer.

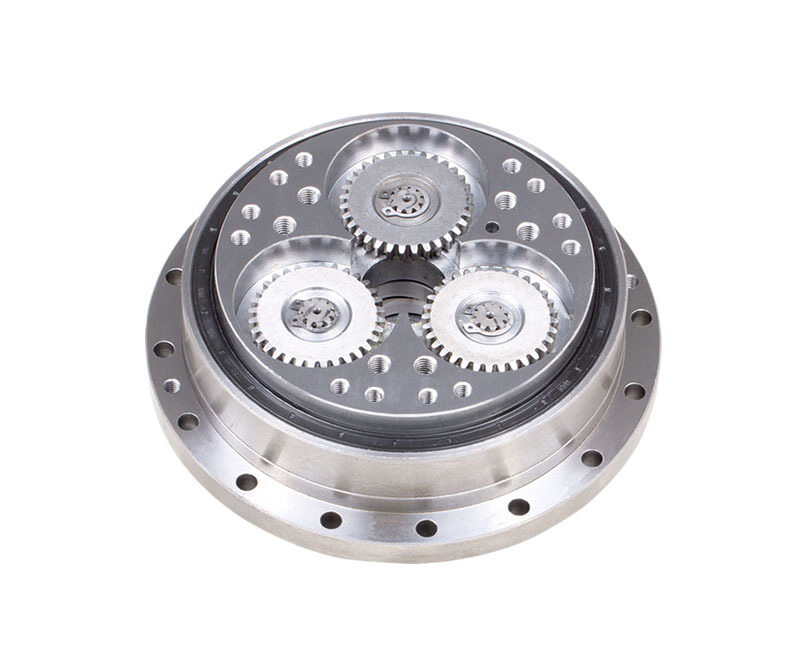

RVE Series Cycloidal Pin Gear Precision Reducers
The RVE series offers multiple frame sizes and mounting configurations to suit equipment space and output requirements. Available with center or outer diameter positioning, the unit is sealed using O-rings and liquid sealant. High coaxiality between the motor shaft and reducer ensures stable operation of precision transmission systems.

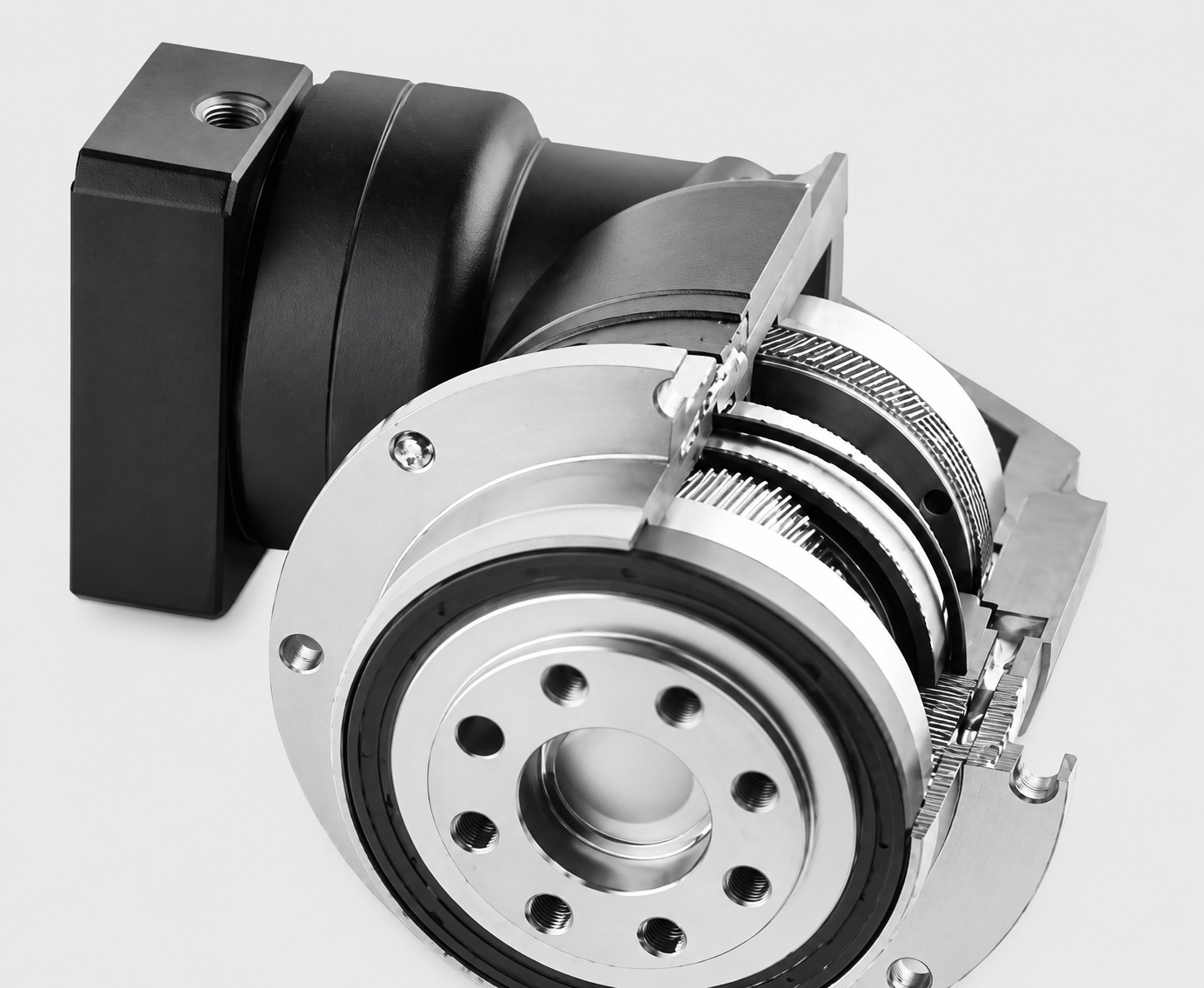

HDR Series Right-Angle Planetary Gearboxes
The HDR series offers five models ranging from 064HDR to 200HDR, with reduction ratios covering 3 to 200. Rated input speed is 3000rpm, with a maximum of 6000rpm. Available in P0 ultra-precision, P1 precision, and P2 standard backlash grades. Equipped with synthetic lubricant, IP65 protection rating, and mountable in any orientation.

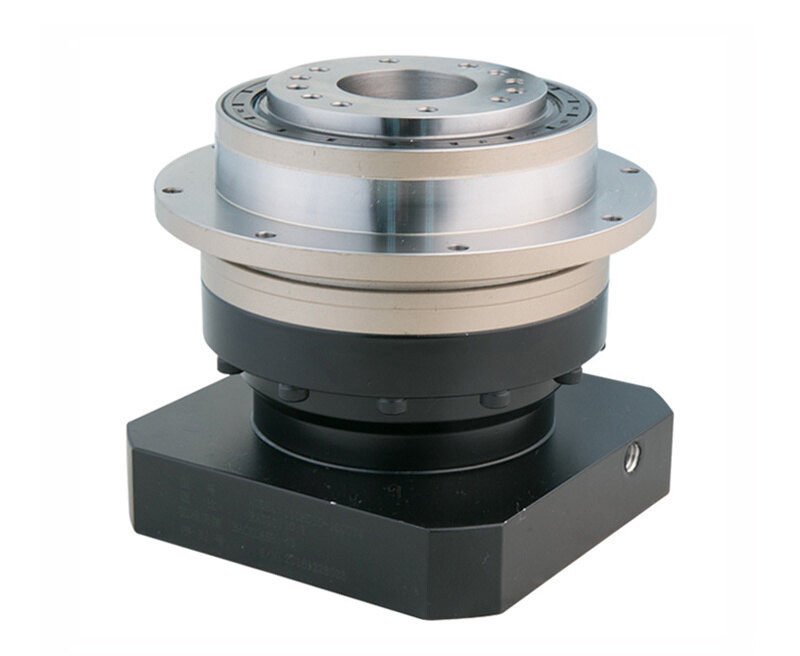

HD Series Precision Planetary Gearboxes
The HD series offers five models ranging from HD064 to HD200, with a rated output torque up to 1200 N·m and a maximum input speed of 10000rpm. It supports backlash grades P0 (ultra-precision), P1 (precision), and P2 (standard), achieves single-stage efficiency ≥97% and two-stage efficiency ≥94%, features an IP65 protection rating, and can be mounted in any orientation.

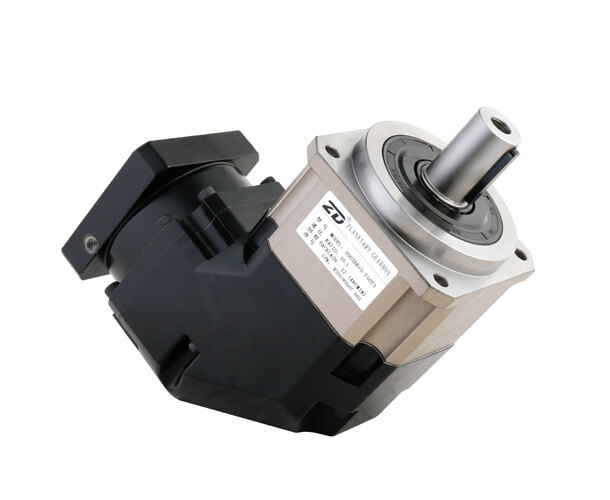

ZBR Series Right-Angle Precision Planetary Gear Reducers
The ZBR series offers six models ranging from 060ZBR to 220ZBR, with gear ratios spanning 3 to 200 and a maximum rated output torque of up to 2000 N·m. Available in P0 ultra-precision, P1 precision, and P2 standard backlash grades, it delivers single-stage efficiency ≥97% and two-stage efficiency ≥94%, IP65 protection rating, and supports mounting in any orientation.

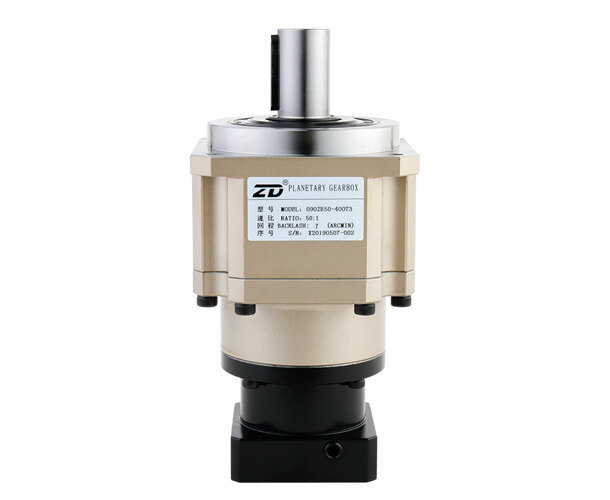

ZB Series Precision Planetary Gear Reducers
The ZB series offers multiple specifications from 042ZB to 220ZB, supporting both single-stage and two-stage reduction configurations with a reduction ratio range of 3 to 100. Available in P0 (high precision), P1 (precision), and P2 (standard) backlash grades, it delivers single-stage efficiency ≥97% and two-stage efficiency ≥94%, with an IP65 protection rating. Designed to meet diverse requirements for accuracy, torque, and mounting space.
