Drum Motor
Motor and Drive System – Drum Motor
113 AC Motorized Drum
The product features an oil-immersed motor for cooling and high-alloy steel precision-ground gears. The motor has an insulation class F rating and includes an overheat protector. The shaft end employs a dual-seal design, achieving an IP66 protection rating. The standard drum is made of galvanized low-carbon steel; alternatively, a 304 stainless steel food-grade drum can be selected. Customization options include drum length, belt speed, and non-standard specifications.

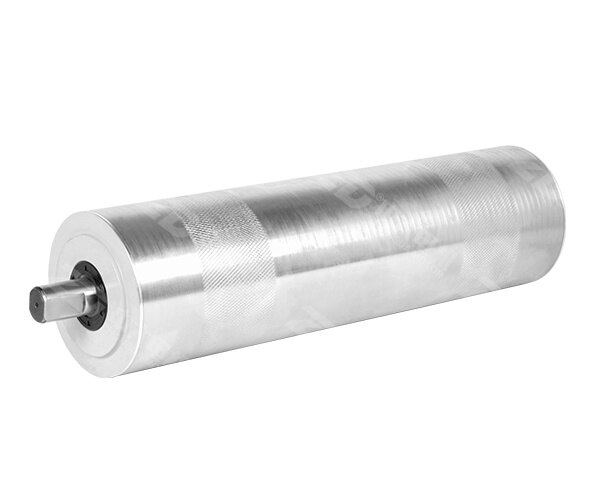

138 AC Motorized Drum
The product features an oil-immersed motor cooling system, Class F insulation, and overheating protection. The shaft end uses a dual-seal structure with an IP66 rating. The standard barrel is made of galvanized low-carbon steel; SUS304 food-grade stainless steel barrels are also available. Customization options include belt speed, barrel length, and non-standard specifications.

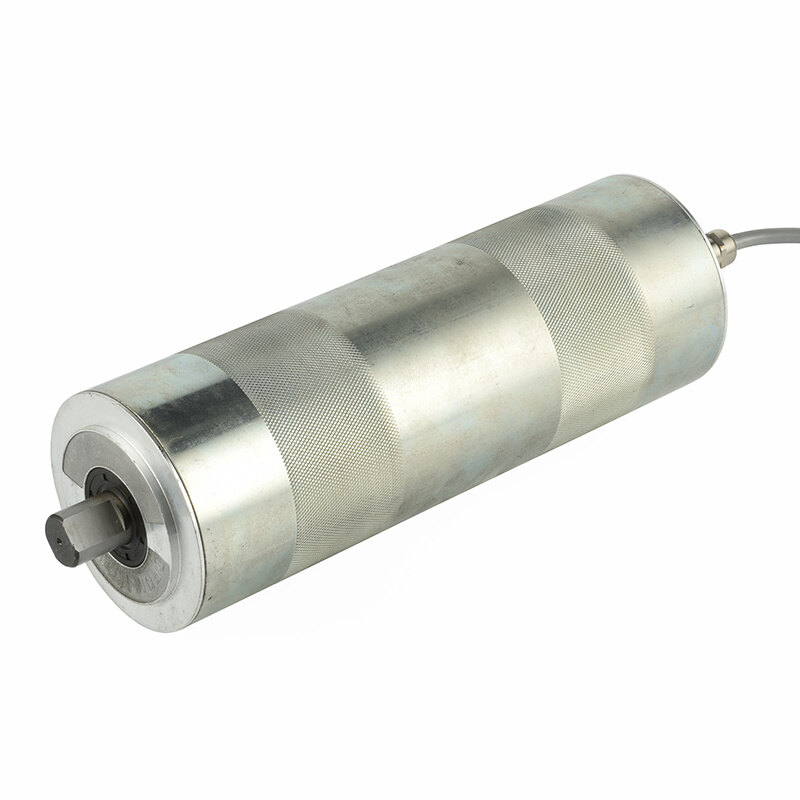

165 AC Motorized Drum
The product features high-alloy steel precision-ground gears and a cast-iron gearbox. The motor incorporates oil-immersed cooling, Class F insulation, and overheating protection. The shaft end utilizes a dual-seal structure with an IP66 rating and supports customization for belt speed, drum length, and non-standard specifications.
50 High-Voltage Sensorless Brushless Electric Drum
Rated power: 60W, rated voltage: 220V. Available in multiple gear ratios and output speeds. Outer tube options include SUS304 stainless steel or galvanized carbon steel. Weight is approximately 3.9kg. Select based on required conveyor speed and torque.

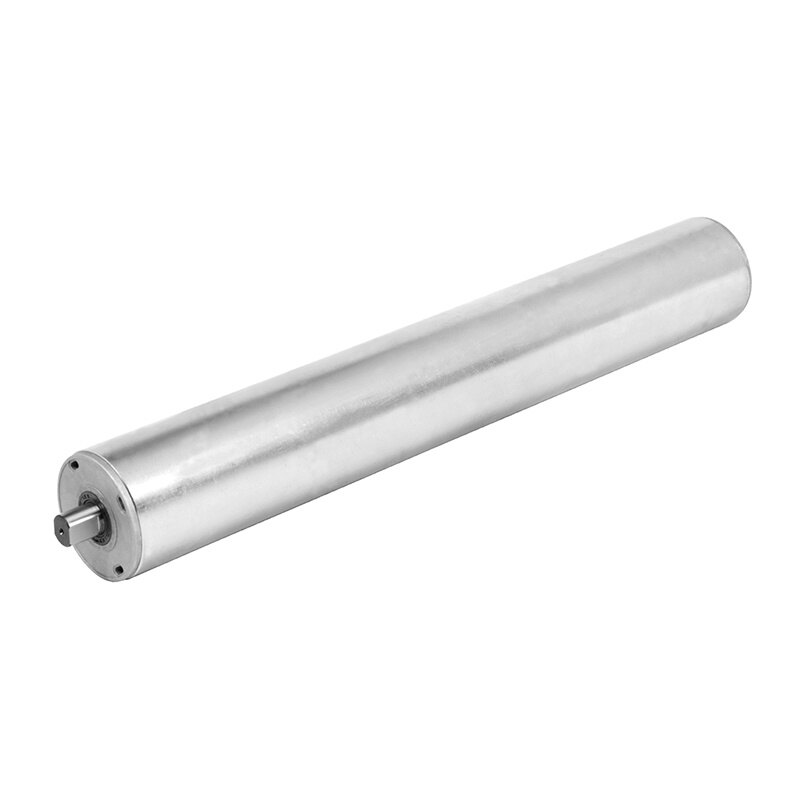

60 High-Voltage Sensorless Brushless Electric Drum
Rated voltage: 220V. Offers gear reduction structures in 1, 2, and 3 levels, with a speed ratio range of 5.18 to 181.1. Outer tube options include SUS304 stainless steel or galvanized carbon steel. Features compact size, wide speed range, and multiple output torque options.
76 High-Voltage Sensorless Brushless Electric Drum
Rated voltage: 22V. Offers gear reduction structures in levels 1, 2, and 3, with a speed ratio range of 6.75 to 99.27. Outer tube options include SUS304 stainless steel or galvanized carbon steel, balancing high output torque, wide speed range, and compact installation.
89 High-Voltage Sensorless Brushless Electric Drum
Rated voltage: 220V. Offers gear reduction structures with ratios of 1, 2, and 3. Reduction ratio range: 6.75–99.27. Outer tube available in SUS304 stainless steel or galvanized carbon steel; select the appropriate reduction ratio based on conveyor speed and load requirements.
